Neurolucida 360 windows

The Neurolucida 360 user interface has two principal windows:

  • 2D window: Includes the File menu and ribbons with tools for optimizing images, conducting batch processes, defining regions of interest, and setting software preferences.
  • 3D environment: Tools for tracing/detecting structures to model your images, segmenting large/complex images to facilitate tracing, and capturing movies to present your work to others. Learn more here.

View the slideshow below for highlights of the user interface.

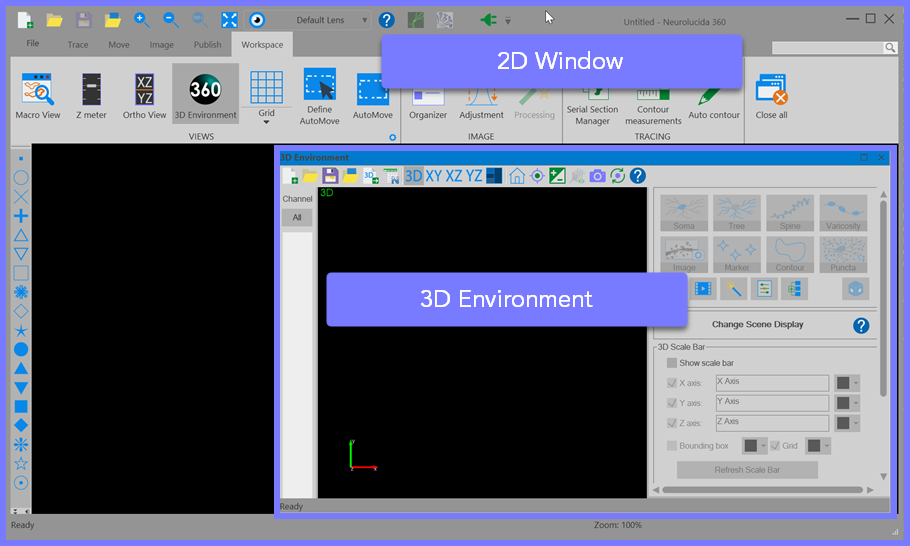

2D window and 3D Environment

When you open Neurolucida 360 software, both the 3D Environment and 2D windows will open.

You can dock the 3D window or close it (with the "X" in the upper right corner), but closing the 2D window will shut down Neurolucida 360 software.



Light and Dark interface themes

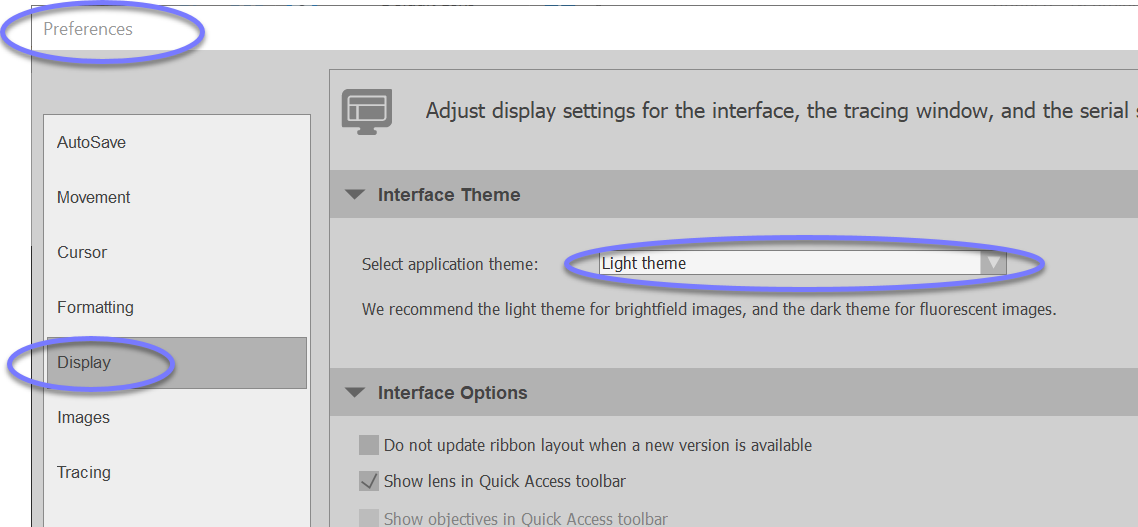

Go to File > Preferences > Display and choose your preferred Neurolucida 360 software theme.

  • The Dark theme was developed for working with fluorescence images

  • and the Light theme for brightfield images.



Tool ribbons in the 2D window

  • Tools for working in the 2D window are grouped by tasks. Some "buttons" appear on more than one ribbon.
  • Tools are clustered into groups on each ribbon. Press the gear icon to go right to Preferences that affect the tool group.
  • You can hide the ribbons to expand your working space by right-clicking the ribbon area and choosing Minimize the ribbon

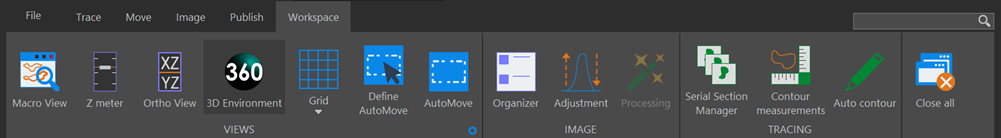

The Workspace ribbon includes all of the dockable windows—tools that you may use frequently.

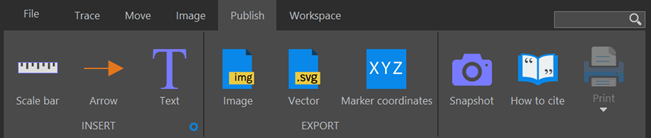

The Publish ribbon includes tools for sharing your work with others, such as adding a scalebar, and exporting images of your tracings in image or vector formats.

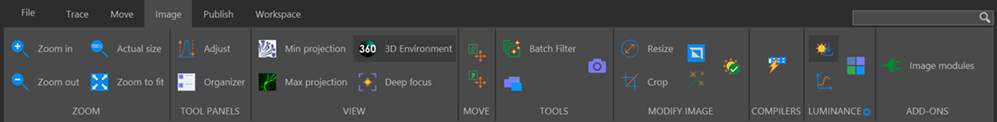

The Image ribbon includes tools for adjusting and organizing images, batch filtering, and many other functions.



Quick access tools

The top of the main window includes tools to help speed up your work.



Quick Access bar

The Quick Access bar contains the most frequently used tools.

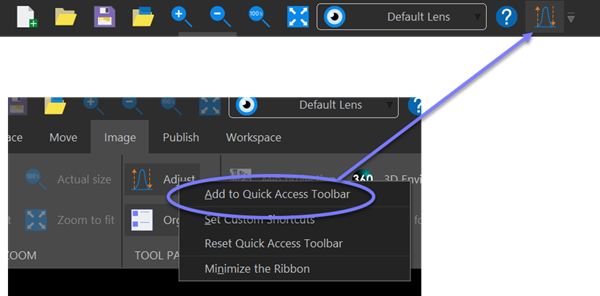

Add any tool in the 2D window to the Quick Access toolbar by right clicking on it and choosing Add to Quick Access Toolbar



Quick Launch/Tool search

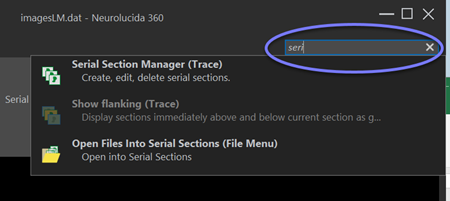

If you can't find a tool, but know its name, type it into the Quick Launch box on the top right of the 2D window. Neurolucida 360 software searches for the tool and displays choices. Just click a choice to go to that tool.



Drag and drop files to open them

The quickest way to get started with Neurolucida 360 software is to simply drag and drop files onto the application window.

Different windows open, depending on whether you drop image or data files; indicate how you want to handle your files.

Image and image-containing files

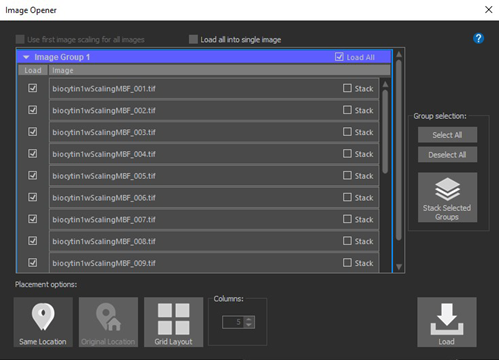

(for example Leica .lif or Zeiss .czi files), the Image Opener window appears:

Data files

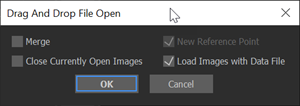

(for example .xml and .dat files), the Drag and Drop File Open window appears:



3D Environment

If it's not already open, click the 3D environment button on either the Image or Workspace ribbon to open the 3D environment.





Navigating in the 3D environment

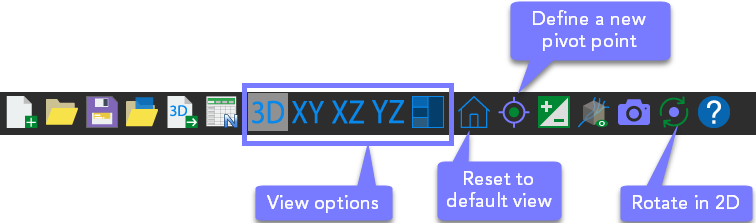

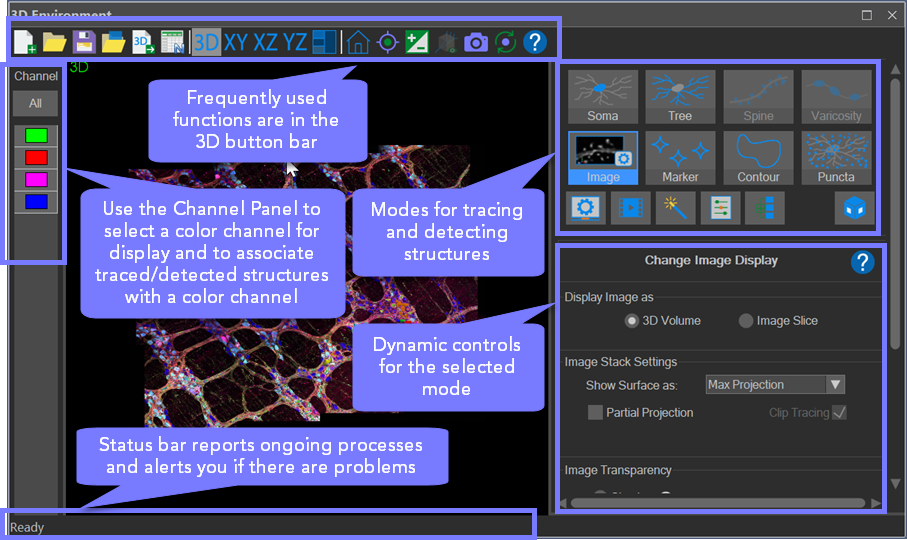

Use your mouse and the navigation tools in the 3D button bar

Use your mouse to:

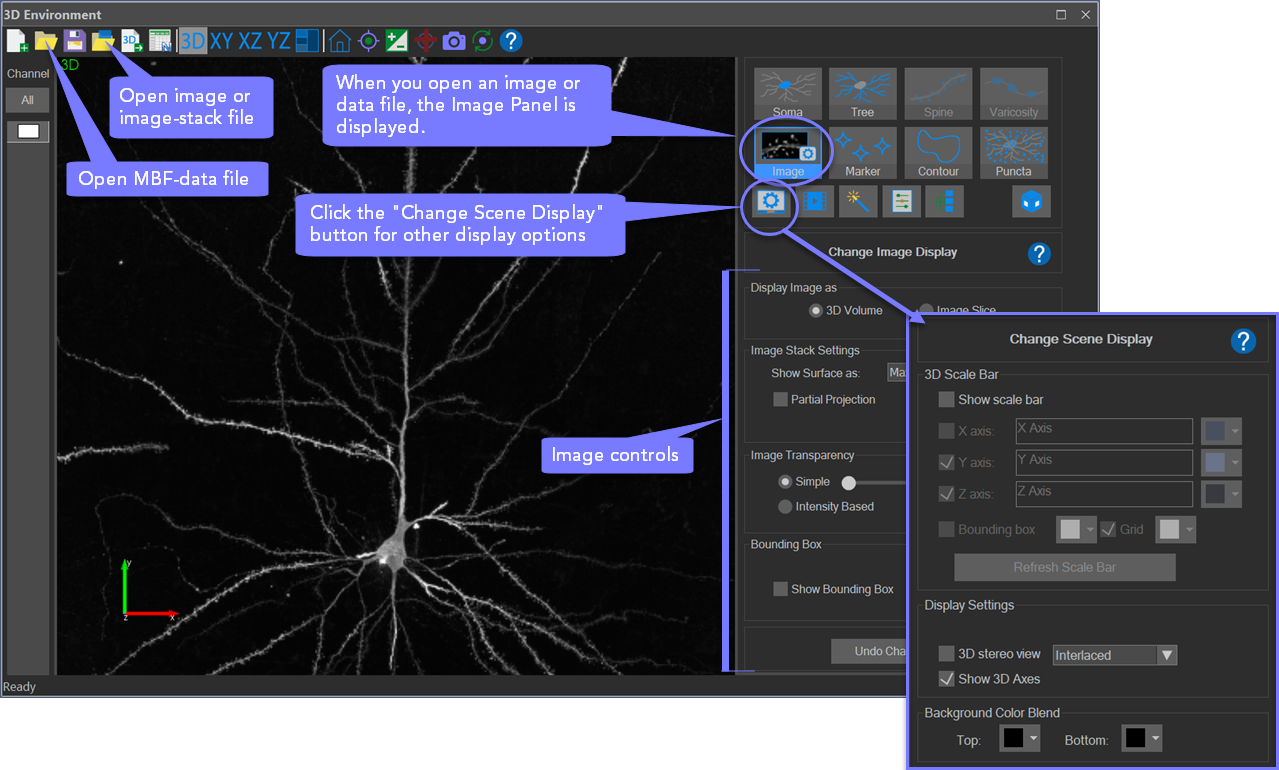

  • Load images by dragging and dropping them onto the Neurolucida 360 window. The Image Opener and/or the Image Scaling dialogs will prompt you for information about the files if needed.
  • Rotate: Drag the mouse to rotate the image around a pivot point.
  • Zoom: Scroll the mouse wheel to zoom in or out.
  • Pan: Hold the Shift key on your keyboard and drag your mouse to pan.

The 3D environment button bar includes many commonly used functions (some are also available in the 2D window).

Customize image and scene display

Learn more about changing the Image display

Learn more about changing the Scene display



Soma tracing, detection, and editing

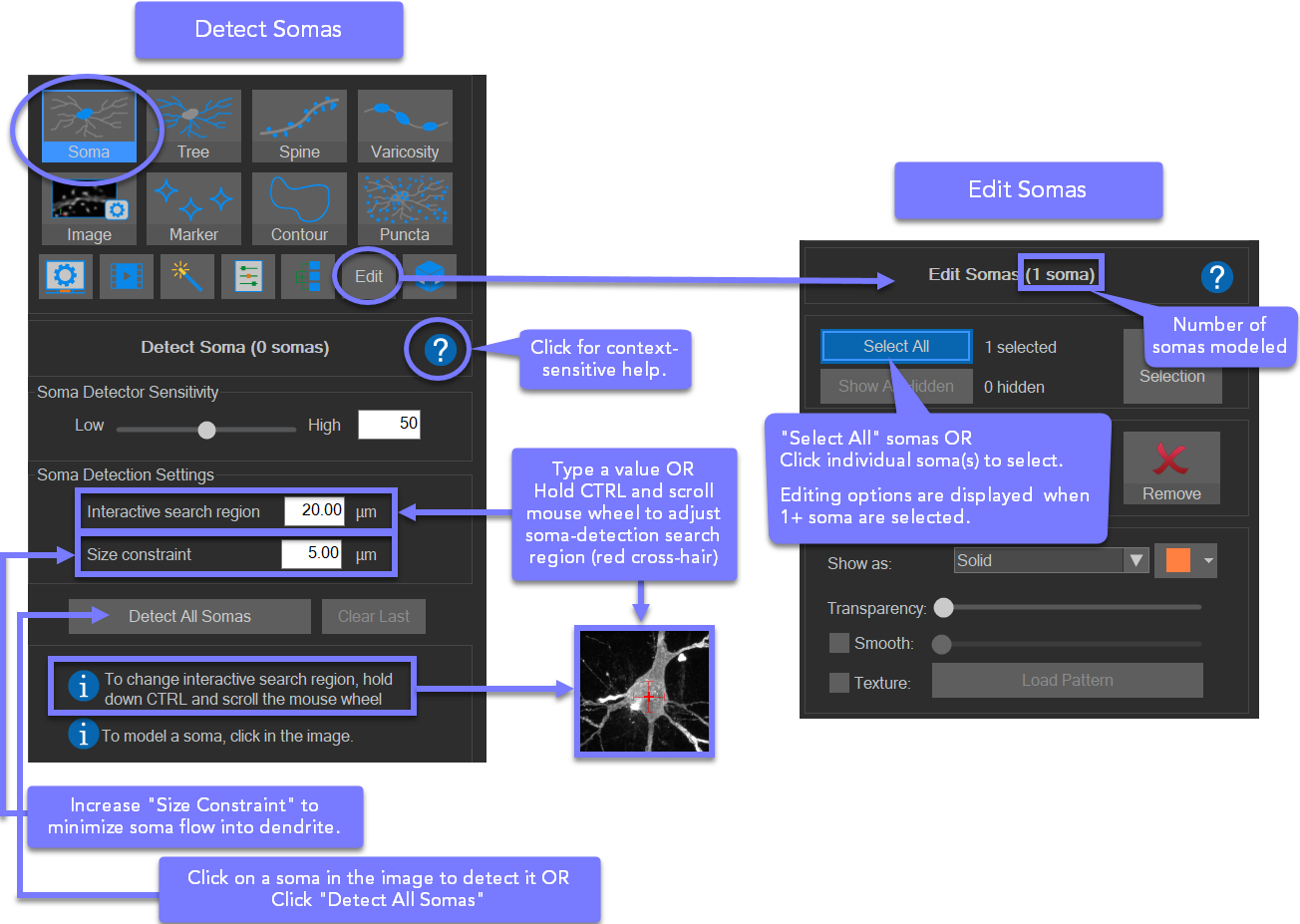

Learn more about detecting and editing soma

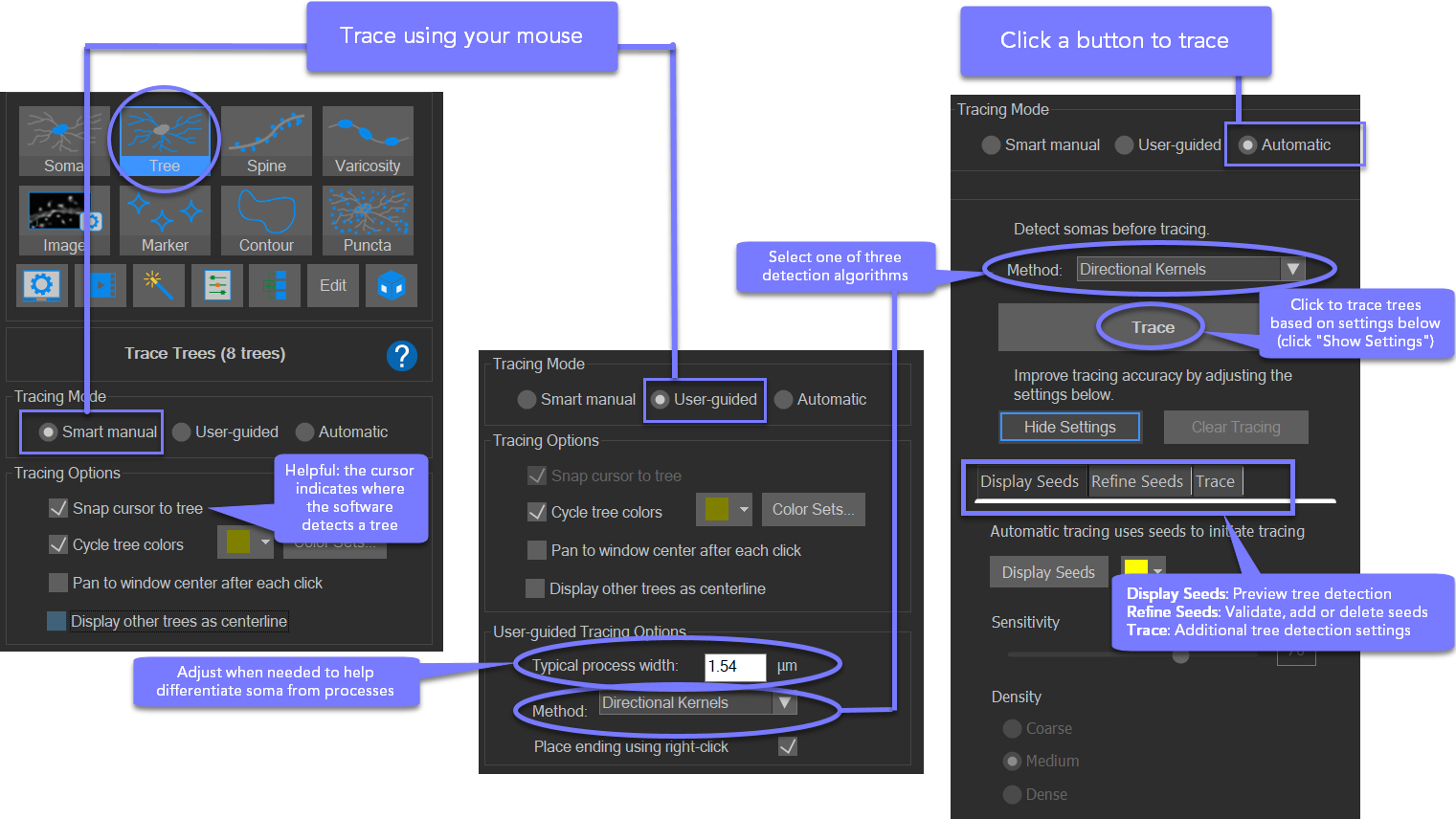

Tree tracing and detection

Trace trees using smart manual or user-guided tools, or let Neurolucida 360 software detect them automatically.





Editing trees

Edit your traced trees for cleanup and categorization

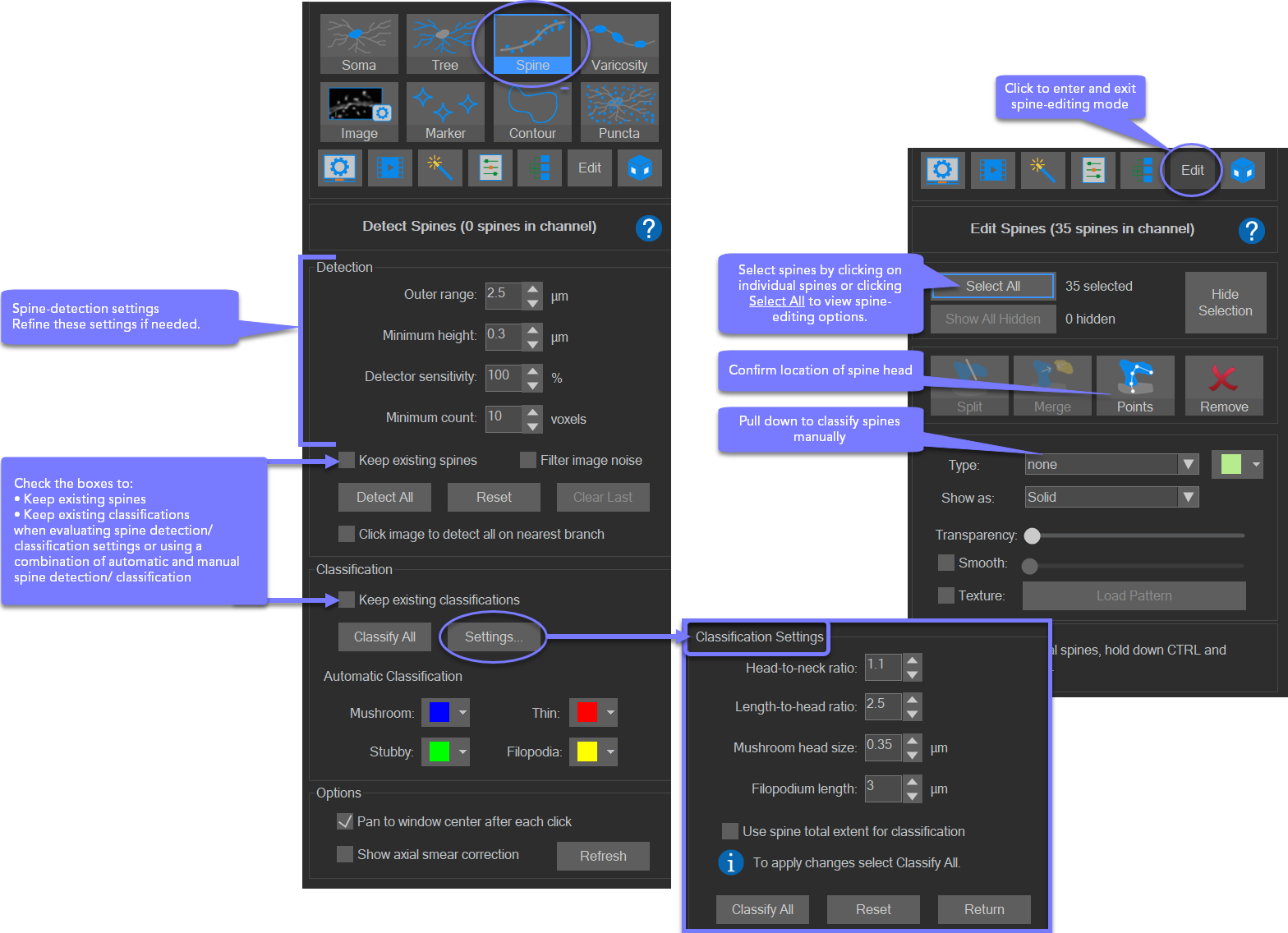

Spine detection and editing

After you have traced or detected at least one tree, you can detect spines, then edit spines on your traced structures.

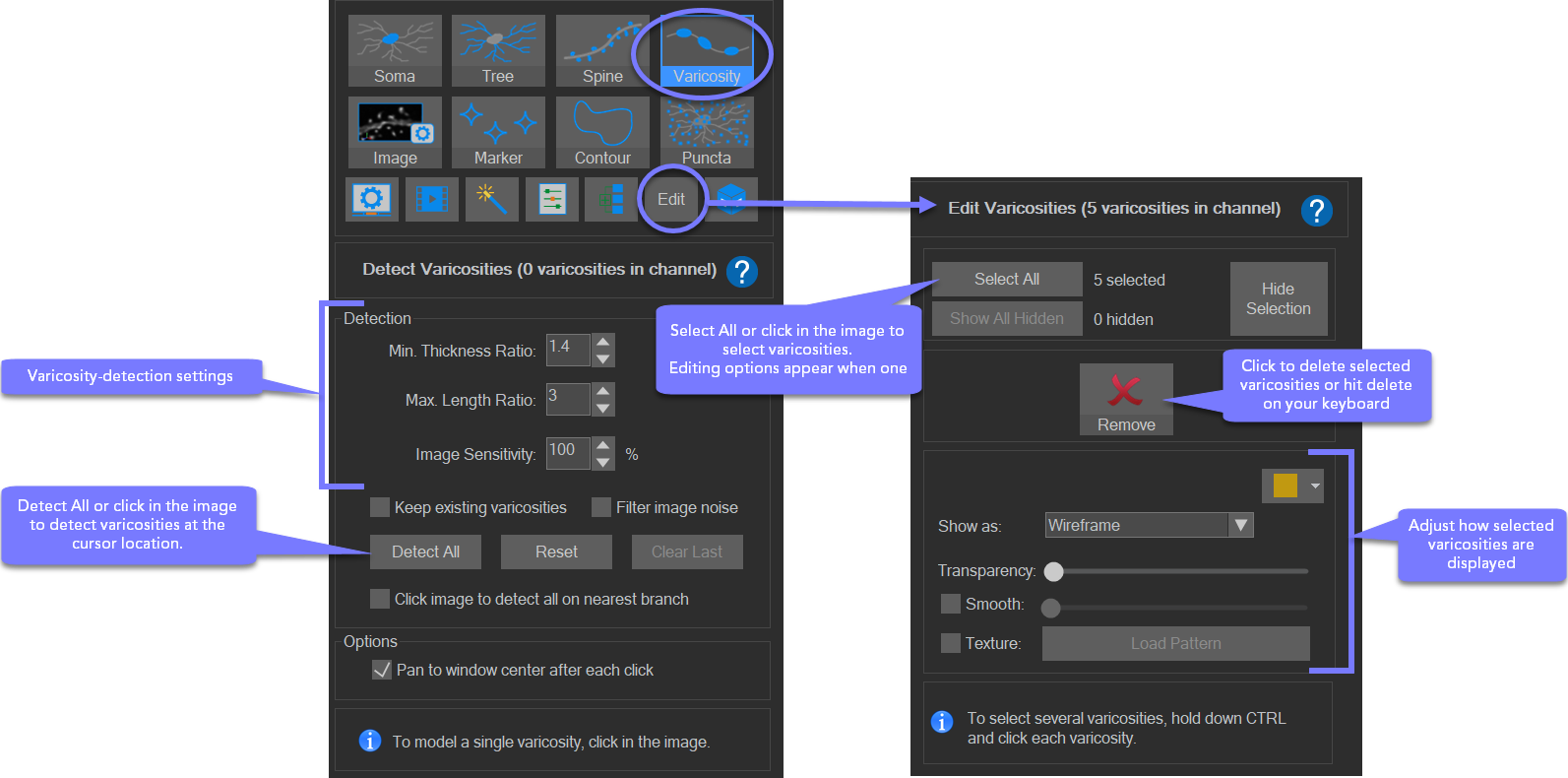

Varicosity Detection and Editing

Tools for varicosity detection and editing are similar to tools available in other modes.

Detect at least one tree in your image to access varicosity-detection mode.



Puncta detection and editing

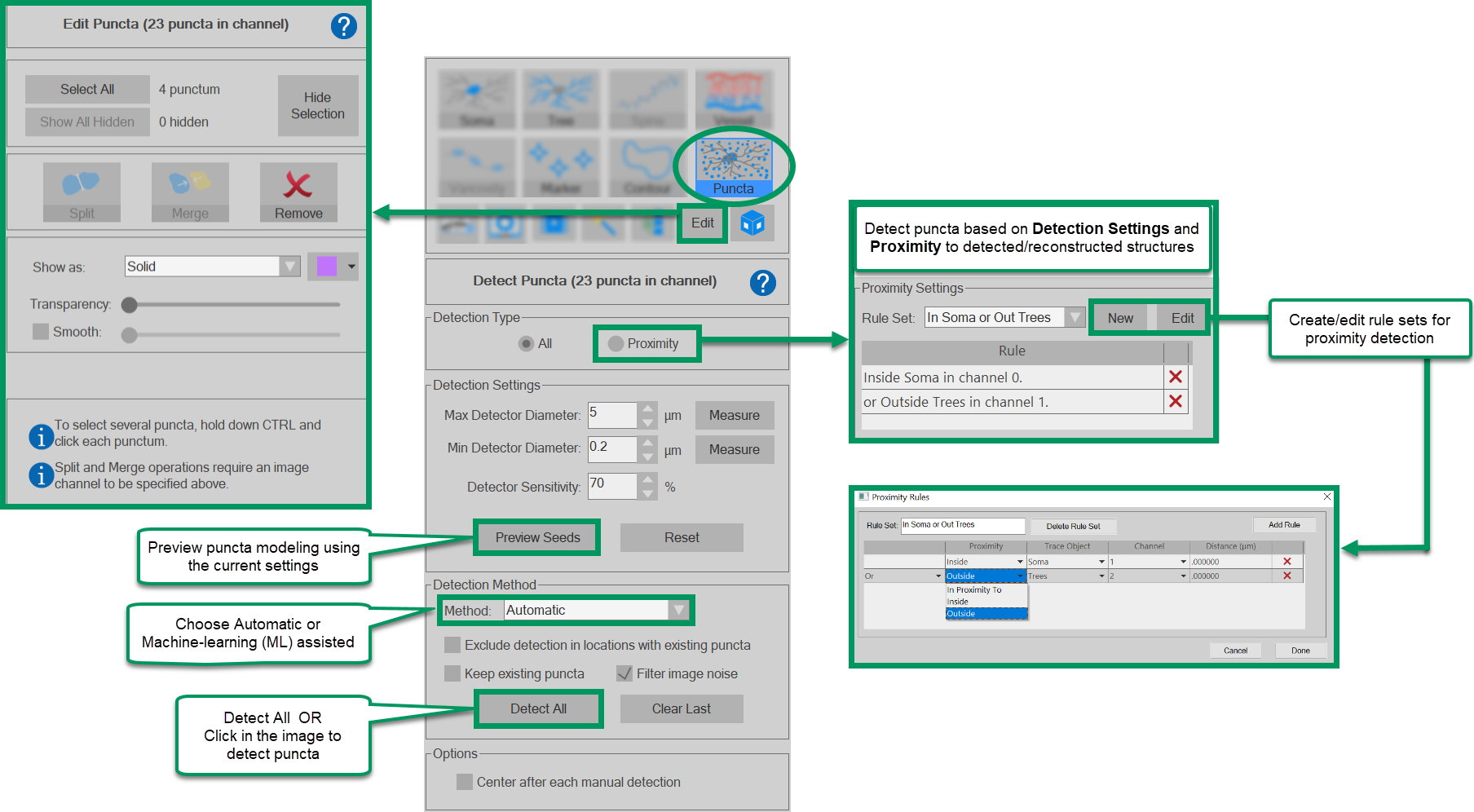

Learn more about puncta detection and editing.



Contour drawing and editing in the 3D environment

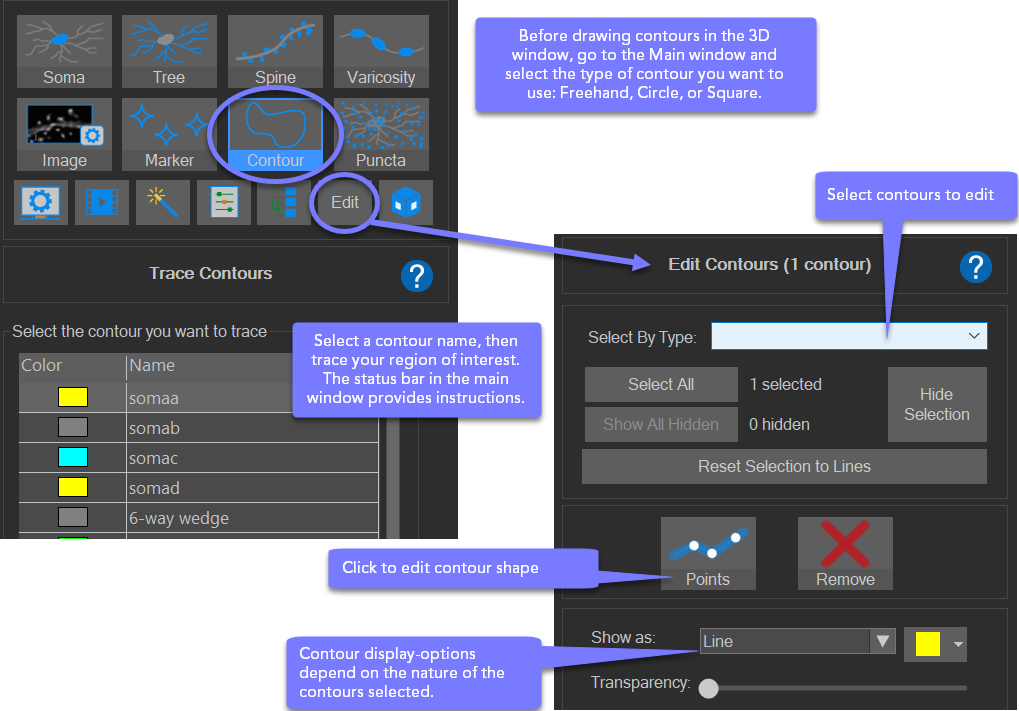

Contours are 2-dimensional shapes that can be drawn in either the 2D window or in the 3D environment to define regions of interest.



Marker placement and editing

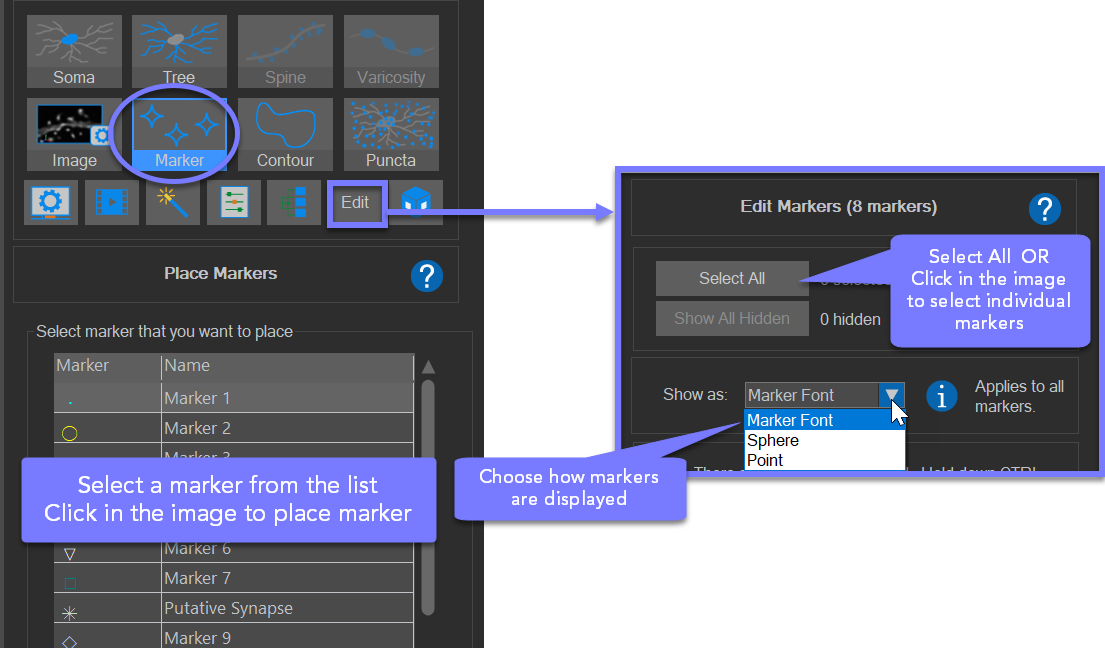

Place markers in either the 2D window or in the 3D environment (shown in 3D below)

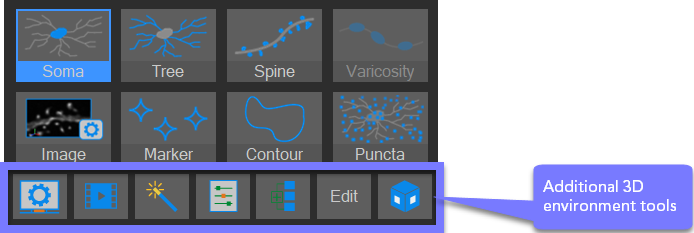

Additional tools in the 3D environment

Under the buttons for tracing and image modes in the 3D environment are an additional set of tools for working with your images.



Change Scene Display: Click the button to modify display settings, such as adding scale bars, 3D-stereo effects, and background colors.
Create Movies: Create mp4 movies of your images or tracings.
Post-Processing: Access options for post-processing to enhance the graphic display of your modeled structures for publication.
3D Settings: Save your settings for automatic detection and tracing of structures.
Sets: Group traced structures into sets for later analysis in Neurolucida Explorer software.
The Edit button appears when editing functions are available. For example to edit somas, trees, spines, markers, or contours.
Subvolume: Specify subvolumes (regions of interest) and load image data only from those regions. You can then work in easily managed portions of the image volume. By creating subvolumes that overlap slightly, you can reconstruct the entire image volume piece by piece.

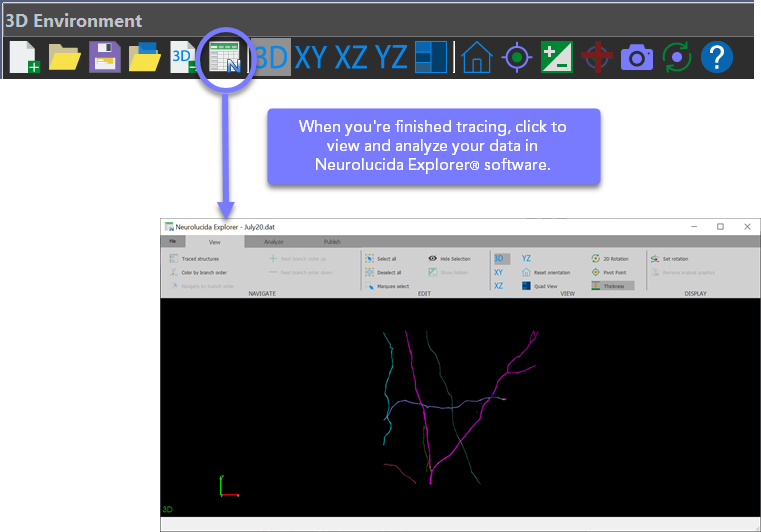

Data analysis in Neurolucida Explorer



Watch a demonstration video on YouTube (9:03)
