Cavalieri Estimator

The Cavalieri Estimator is a grid of dimensionless points randomly placed on the region of interest to be estimated. With a grid, the intersections of each of the grid lines are related to the areas formed by the grid.

By associating one area with a point (more accurately, a dimensionless point) located at each intersection, the entire area of the grid is represented.

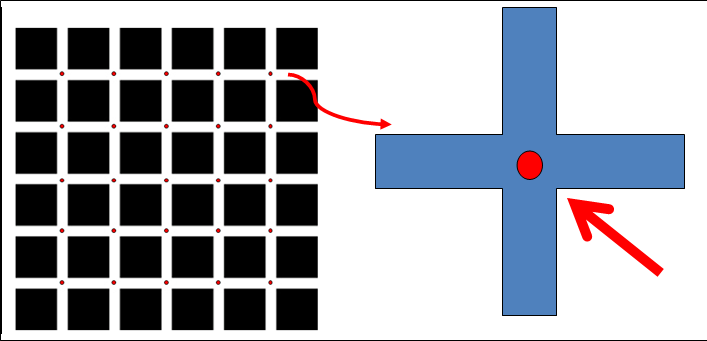

Each point represents a given area. Because it is not possible to draw a dimensionless point, we represent this concept as a cross or plus sign, where a unique feature of the cross (such as the lower left quadrant of the cross) is used to consistently mark the points which overlay the region of interest .

You need to determine an appropriate distance between the points of the point grid that will be overlaid on the region of interest.

The grid spacing determines the number of markers placed.

• Smaller grid spacing results in a more precise estimate, but requires placing more markers.
• Larger grid spacing saves time, but may result in reduced precision.

It is up to you to find the right balance between precision and efficiency. The more points you have, the more decisions you have to make.

Based on theory and practical experience Howard and Reed, Unbiased Stereology, First Edition, p. 41, we know that you can obtain a volume estimate with a 10-15% coefficient of error from 10-15 evenly spaced systematic random sections through the region of interest, and a grid spacing that results in ~200 marker points in total (not per section).

For volume estimation, you also need to know either the thickness of the sections to be sampled, or the thickness interval between the sections to be sampled.

1. Place a reference point.
2. Select the lens that matches the objective from the drop-down menu in the toolbar.
3. Click Workspace>Serial Section Manager to define sections.
4. Click Probes>Volume/Area>Cavalieri Estimator to open the corresponding dialog box.
   • Section Cut Thickness: Defined in the Serial Section Manager.
   • Grid spacing: Enter a value.

     The smaller the distance between lattice grid points, the more accurate the estimate. However, using too many points can be inefficient because it increases the time spent on each site.

   • change marker: Click to change the default marker.
5. Click OK; the program displays a grid of points (represented by cross-hairs by default) over the tissue.

   To change the shape and color of the grid points, go to File>Preferences>Stereology Preferences>Colors And Tick Marks.

6. paint cavalieri markers is the default marking mode. To view and select other marking modes, place the cursor over the tracing window and right-click (see section on Marking modes below for details).
7. Mark all the points that overlay the area of interest on the section.
   • Use the same unique point for each grid point when determining whether the grid point is over the area of interest.

   If the grid point is represented by a cross-hair, always approach from the same quadrant.

   • Use different markers for different sub-regions.
8. Move to the next section.
9. Repeat steps 7–9 until all regions on all sections have been evaluated.
10. After all of the intersections have been marked, click Probes>Common>Cavalieri Estimator again to end the probe run.
11. To view the results, use Probes>Probe run list.

Area Estimation

You can estimate the area of a 2D structure or the cross-sectional area of a 3D structure.

Both the estimated area of the region of interest and an estimated CE (see Coefficients of Error) for this estimate can be determined from the number of points counted and the known spacing between points.

Volume Estimation

Volume estimation of regions that are contained in serial sections entails, first of all, the estimation of the volume seen in the individual sections of the serial section sequence.

• An individual section's volume is estimated as the estimated cross-sectional area of the section (as seen at the top or bottom of the section) multiplied by the thickness of the section.
• The estimated volume of the region is the sum of all the individual section volumes.

When the number of sections through the region of interest is large, marking the area of each section becomes a tedious task. The Cavalieri probe facilitates such a task as it is designed to work from a systematic random sample of the sections and will automatically provide information about the area of each section. If the distance between sections is constant, the area estimates of multiple sections can be combined to give an estimate for total volume and a coefficient of error (see ).

Verify that your microtome, cryostat, or other sectioning tool has been properly calibrated prior to sectioning. Typically, you will want to enter the block advance (pre-shrinkage cut thickness) for the section thickness when prompted, not the post-shrinkage mounted section thickness.

See Cavalieri Estimator formulas

The program calculates an estimate of the volume that accounts for the over-projection error during sampling. This estimate is calculated by removing the largest cross-sectional area from the volume estimate calculation.

Over-projection

To explain this concept, let’s start with a simple three-dimensional structure like a sphere.

• To estimate the volume that the sphere occupies in each section, multiply the area of the visible circle in each section by the thickness of the section.
• To estimate the volume of the sphere, add each individual volume together.

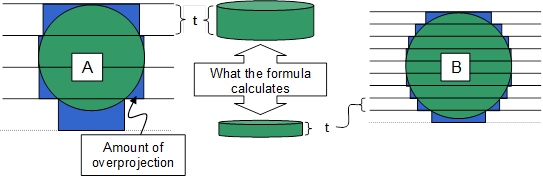

With few sections through the sphere, there is an overestimation in the estimated sub-volume (A in the illustration). This is called an over-projection error (represented in blue in the illustration). As the number of sections through the sphere approaches infinity, the over-projection error decreases (B in the illustration); of course, if you ever managed to get to infinity, the error would be zero.

Thus the size of the error depends on the relative ratio of the size of the object and the thickness of the sectioning. It also depends on where the object appears in the section (the error is larger if the object does not extend all the way through the section).

You cannot eliminate the error completely, but in biological experiments, it is often possible to section the tissue thinly enough to get many sections through the area of interest. This is also why it is cumbersome to use the Cavalieri probe on small objects such as cells—it is too laborious to obtain many sections. But note that different methods exist for the estimation of small objects (e.g., Nucleator).

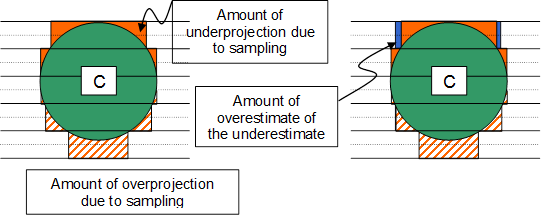

Using systematic random sampling, the error can be reduced even more. If we section the sphere as we did in B above, but only examine every other section (the solid lines in C in the illustration below), the error is smaller than if the section thickness were greater (e.g. A). When sampling, the amount of overestimation is balanced by the amount of underestimation. The remaining is known as the “amount of overestimate of the underestimate.”

During sampling, underestimation occurs as the region gets larger as you progress through the sections (solid orange in C above), while as the region decreases in size, overestimation occurs (striped orange in C). The error that remains when you balance the over- and underestimates together is the “overestimate of the underestimate” which is represented by blue in A.

Remember, the amount of over-projection error that may occur in your estimate is due to the variable shape of the region of interest and the number of sections you have through it.
Practically speaking, over-projection error is often considered minimal if you calculate a volume estimate generated from 10-15 evenly spaced systematic random sections through the region of interest.
A more important consideration for the accuracy of the estimation is the definition of boundaries that do not have explicit outlines.

The shape factor is the perimeter of the contour around the area of interest divided by the square root of the area. It is a component of the formula used to calculate the coefficient of error (Coefficients of Error). The program does not calculate a shape factor; instead, it defaults to the value 4.0.

If you determine the shape factor of the areas you are estimating by measuring or estimating the mean area and boundary for your regions, you can modify the shape factor constant used in the CE equation to see the impact on the CE calculation.

Modifying the shape factor does not change the estimated area or volume; it only alters the CE of the estimated area or volume.

Determining a shape factor

Choose a shape factor on the basis of how the region compares to other shapes:

1. Click Move>Where Is to get an aerial view of the region of interest.
2. Click Probes>Stereology results>Probe run list.
3. Click the View Results button to open the Sampling Results window.
4. Click the Edit Shape Factor button to open the Shape Factor window. After changing the shape factor, the calculations that depend upon it are automatically updated.

OR

Calculate and enter the average shape factor.

• Define the boundary then use the estimate of areas.
• If you have contours traced, you can find the Shape Factor for each contour used in the Contour Measurements window (Contour measurements).

The Contour Measurements window also contains area information for the contour. Be aware that this information is calculated assuming that the tracing is accurate to the nearest pixel. Use of the Cavalieri method is required to obtain an unbiased estimate.
