vDAQ™
The next-generation all in one data acquisition and controller for your microscopeProduct Overview
The vDAQTM is an all-in-one card and breakout box that’s engineered to provide the most advanced and dependable microscope control and data acquisition. Designed to work with ScanImage software, it can be used to control galvos, resonant scanners, Pockels cells, piezo objective positioners, stages, shutters and much more. Its breakout box greatly simplifies the wiring complexity of microscopes by eliminating the need for additional 3rd party DAQ hardware. The vDAQ is the control center for the most cutting-edge multiphoton microscopes, from customized DYI to leading commercial systems. The vDAQ is a lot of card for the money.
Play Video
Key Benefits
- Handles even the highest-performance demanding applications of microscope control, including real-time image processing, photon counting and closed loop experiments
- Full software integration with ScanImage for optimal performance and flexibility
- Perform 2P and 3P imaging, even in conjunction with complex behavioral experiments
- Straightforward and simplified wiring using a single breakout box for analog and digital IO’s
- Incredibly cost effective

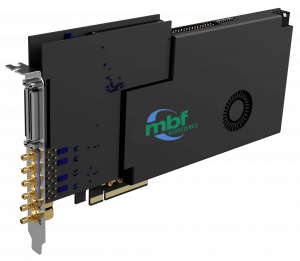

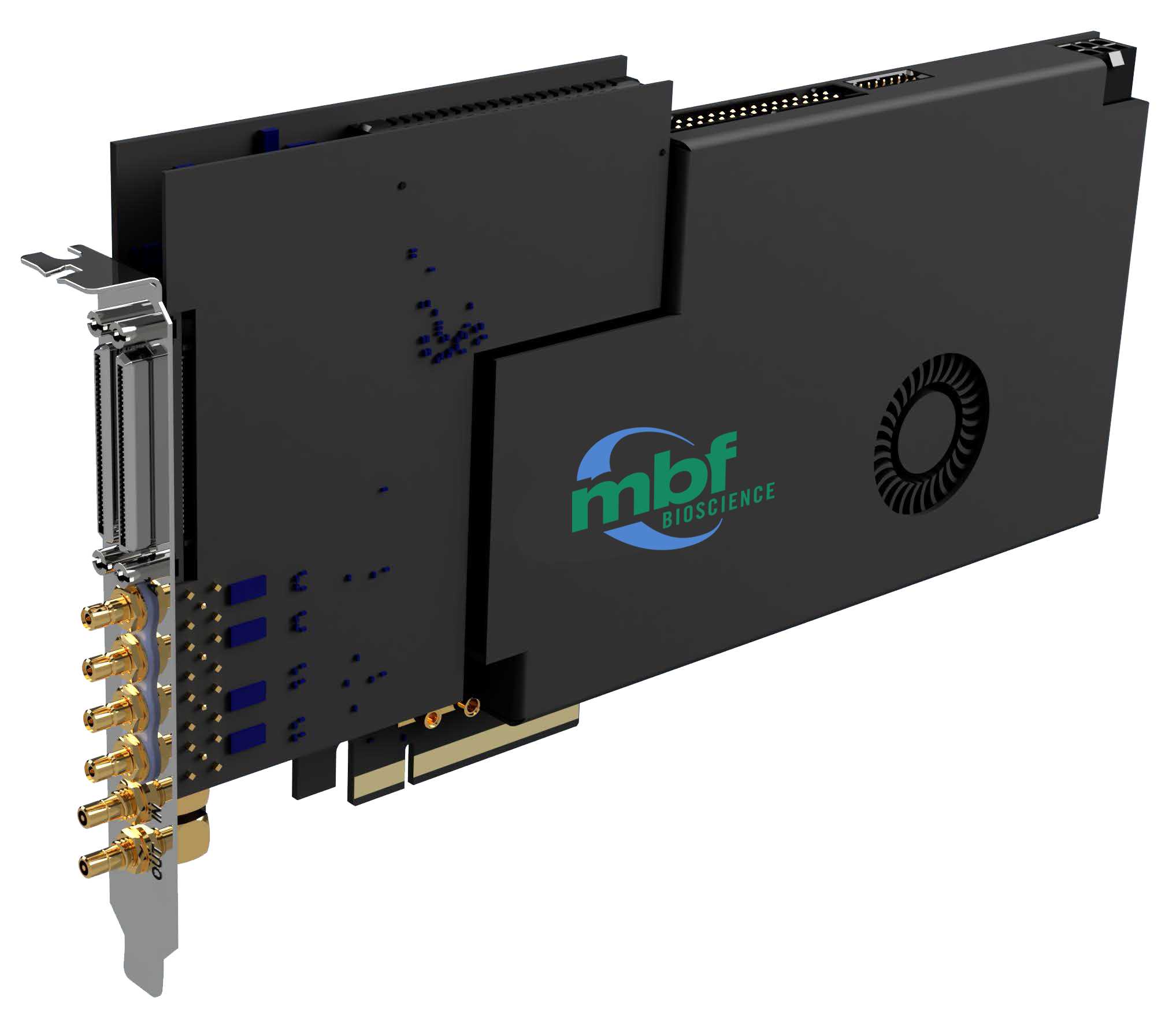

vDAQ is an all-in one data acquisition/control system platform designed for demanding microscope-based applications that require high bandwidth analog signal digitization combined with high accuracy analog output.
Combining various IO options onto a single FPGA platform enables low latency closed-loop control regimes. vDAQ includes a powerful Xilinx Kintex UltraScale FPGA for high-performance real-time processing of data. vDAQ is available in two configurations – Standard and High-Speed.
On-board DDR3 DRAM and a high-speed PCI Express host interface provide flexible options for storing and transferring high bandwidth data streams. vDAQ comes with required cables and breakout accessory for signal connections.
The High-Speed vDAQ
The vDAQ is also available in an even higher sample-rate configuration.
- 2 PMT channels, sampled up to 2.7GHz, 12bit
- Time correlated single photon counting with sub ns dead time
- Simultaneous photocurrent integration and photon counting
- Time demultiplexing with up to 32 bins for an 80MHz laser source
vDAQ is powered by a Xilinx Kintex UltraScale XCKU035 FPGA. The cutting edge UltraScale architecture is the first to offer ASIC-like clock distribution. Efficient routing resources facilitate higher device logic utilization to maximize computing potential.
Connection to the host PC is provided through a PCI Express Gen. 3 x4 interface, which offers up to 4 GB/s data throughput. vDAQ™software supports 64 bit scatter-gather DMA data transfer.
vDAQ includes 4 GB of onboard DDR3 DRAM operating at 1600 MHz. Memory interface is capable of 12 GB/s throughput for local buffering of data.
vDAQ supports up to 4 PMT channels, sampled up to 125MHz, 14bit, synchronization to laser clock, 12 analog inputs, 12 analog outputs, and 32 Digital IO’s
High-speed Analog Input
vDAQ includes high-speed analog input channels accessible from SMB terminals on the rear connector panel of the PCI Express card installed in the PC. Channels support switchable input ranges and an optional low pass filter that can be enabled by software with a variable cutoff frequency. Table 1 details the specifications of the high-speed analog input channels.
Table 1:
| Specification | Unit | vDAQ | High-Speed vDAQ |
| Number of Channels | 4 | 2 | |
| Channel Resolution | Bits | 14 | 12 |
| Sampling Rate Range | MHz | 62.5 - 125 | 2000-2700 |
| Timing/Synchronization | Simultaneously Sampled | Simultaneously Sampled | |
| Input Range | Vpp | 0.5 - 2 | 1-2 |
| Input Impedance | Ω | 50 | 50 |
| Low Pass Filter Cutoff Frequency | MHz | 1 - 63, FBW (Bypass) | N/A |
| Overvoltage Protection | V | ± 10 | ± 7.4 |
Precision Analog Input
vDAQ includes precision analog input channels accessible from BNC connectors on the breakout accessory. Table 2 details the specifications of the precision analog input channels.
Table 2:
| Specification | Unit | |
| Number of Channels | 12 | |
| Channel Resolution | Bits | 16 |
| Max. Sampling Rate | MHz | 1 |
| Timing/Synchronization | Simultaneously Sampled | |
| Input Range | Vpp | 0.5 - 2 |
| Input Impedance | GΩ | 50 |
| Overvoltage Protection* | V | ± 25 |
*Overvoltage Protection rating only valid when vDAQ is powered on
Precision Analog Output
vDAQ includes precision analog output channels accessible from BNC connectors on the breakout accessory. Table 3 details the specifications of the analog output channels.
Table:3
| Specification | Unit | |
| Number of Channels | 12 | |
| Channel Resolution | Bits | 16 |
| Max. Sampling Rate | MHz | 2 |
| Timing/Synchronization | Independent | |
| Output Range | V | ± 10 |
| Output Current Drive | mA | 20 |
Digital Input/Output
vDAQ offers digital input/output lines divided into four groups. Two groups offer individual direction control for each line while the other two groups are group direction controlled. All DIO lines use 5V TTL logic level signaling. All digital lines are accessible from BNC connectors on the breakout accessory. Tables 4 and 5 detail the digital channel specifications.
Table 4:
| Specification | Unit | Minimum | Typical | Maximum |
| Channels Per Group | 8 | |||
| Direction Control | Independent | |||
| Input Low Logic Level | V | 1.0 | ||
| Input High Logic Level | V | 2.3 | ||
| Output Low Logic Level | V | 0.0 | 0.6 | |
| Output High Logic Level | V | 4.4 | 5.0 | |
| Output Current Drive | mA | -16 | 16 | |
| Absolute Voltage Range | V | -0.5 | 5.5 |
Table 5
| Specification | Unit | Minimum | Typical | Maximum |
| Channels Per Group | 8 | |||
| Direction Control | Group | |||
| Input Low Logic Level | V | 0.8 | ||
| Input High Logic Level | V | 2.0 | ||
| Output Low Logic Level | V | 0.0 | 0.8 | |
| Output High Logic Level | V | 4.0 | 5.0 | |
| Output Current Drive | mA | -24 | 16 | |
| Absolute Voltage Range | V | -0.5 | 6.5 |
Clock Synthesis
vDAQ includes an onboard clock synthesis module for synchronizing high-speed analog front end to external clock sources. An external clock source can be connected at the SMB terminal on the rear connector panel of the PCIe card installed in the PC. External clocks can be multiplied and delayed in 370ps steps. Table 6 details the specifications of the clock input.
Table 6:
| Specification | Unit | |
| Input Frequency | MHz | 1 - 425 |
| Input Impedance | Ω | 50 |
| Input Voltage | Vpp | 0.4 - 5.0 |
Compatibility Requirements
vDAQ requires a desktop PC with one PCI Express x8 slot. While a physical x8 slot is required, only x4 link width will be utilized. One six pin PCI Express power connector is required. Power capacity of PC power supply should also be considered when adding vDAQ™to a PC. vDAQ™will draw 5 – 20 W depending on design loaded on FPGA. The host PC must run Microsoft Windows 10 or Windows 11 operating system.
vDAQ: Key Features
Powered by the newest Xilinx FPGA

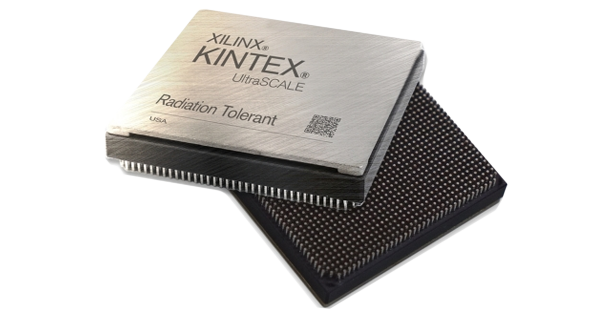

vDAQ uses the state-of-the-art Xilinx Kintex Ultrascale FPGA which provides greater capacity for real-time image processing and closed loop experiments. The vDAQ comes standard with 4 GB of DRAM giving you more processing power.
vDAQ: Key Features
Flexible and Fast IO
4-channel 125 MHz data acquisition at a 2-channel price with 4 GB/sec data transfer rates to the host computer. All analog inputs and outputs are independent and FPGA controlled.
vDAQ: Key Features

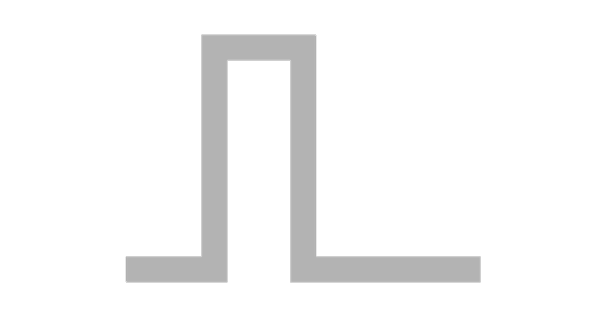

Synchronize with any clock
Unlike other DAQ hardware, the vDAQ can be synchronized with any external clock, and it can produce its internal clock signals as well. Of course, it supports all advanced ScanImage trigger capabilities.
vDAQ: Key Features

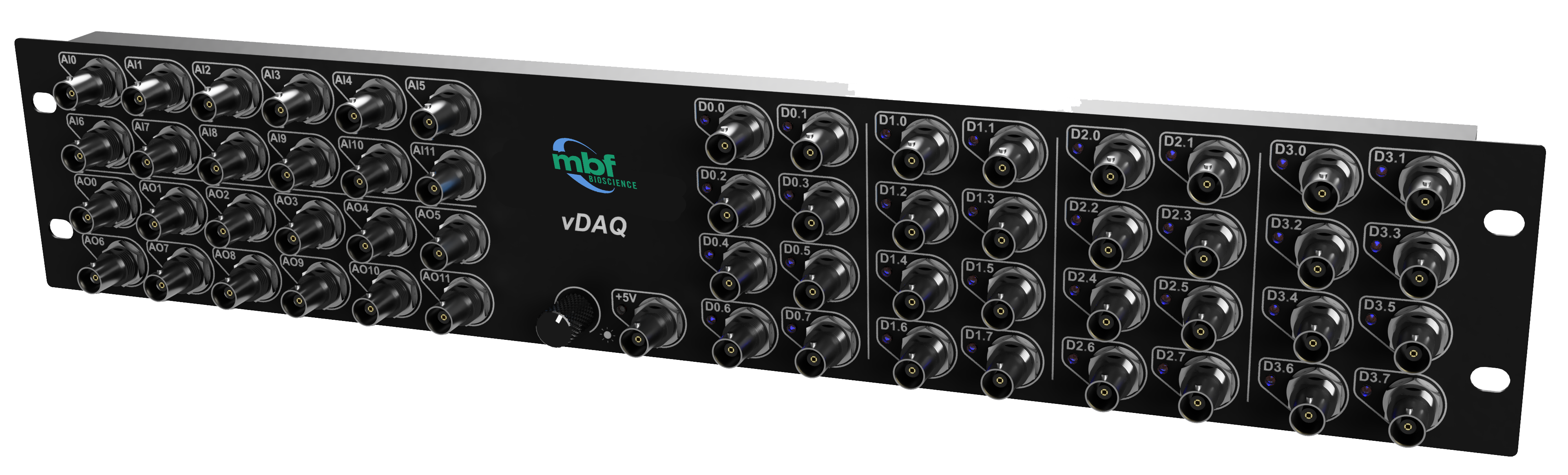

A single, integrated breakout box
You asked for simpler wiring diagrams! Now you can achieve it with the vDAQ and a single breakout box in a slick 2U 19 inch rack mount format. The breakout box and connecting cable are included with the vDAQ.
vDAQ: Key Features
Photon counting with a high-speed vDAQ
The vDAQ is also available in an even higher sample-rate configuration. With 2 channels sampling at up to 2.7GHz per channels, the High-Speed vDAQ is the perfect tool for time correlated single photon counting with sub ns dead time, simultaneous photocurrent integration and photon counting, and time demultiplexing with up to 32 bins for an 80MHz laser source.
Versions of vDAQ
| Feature Description | vDAQ™ | High-speed vDAQ™ |
|---|---|---|
| Xilinx Kintex UltraScale FPGA | ||
| 12 Analog Inputs - 1MHz, 16bit | ||
| 12 Analog Outputs - 2MHz, 16bit | ||
| 32 Digital IOs | ||
| 4GB DDR3 RAM | ||
| 4GB/s data transfer rates | ||
| synchronization to laser clock | ||
| 4 PMT channels, sampled up to 125MHz, 14bit | ||
| 2 PMT channels, sampled up to 2.7GHz, 12bit | ||
| time correlated single photon counting with sub ns dead time | ||
| simultaneous photocurrent integration and photon counting | ||
| time demultiplexing with up to 32 channels relative to external clocks as low as 80kHz |
