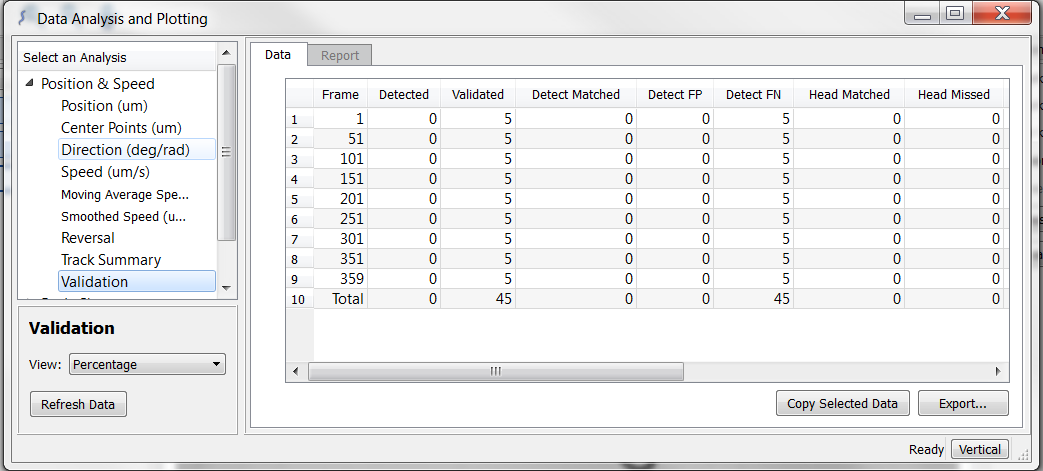

Analyze Results (validation)

Number or percentage of false negative matches. A false negative is a worm you marked that wasn't detected by the software.

Number or percentage of false positive matches. A false positive is a software-detected worm that you didn't mark. The most likely reason for a false positive is that the object detected is not a worm.

Number of worms or percentage detected by the software and that you matched

Number of worms detected by the software

Frame number

Number or percentage of heads matched by you and the software

Number or percentage of heads missed by the software

Distance error in µm for marking head/tail between you and the software. This is an accuracy measurement.

Total across all validation frames

Average of all Head/Tail Measurement Error values

Number of worms marked
