Histograms

The software provides default values for the range (min,max) and the bin width based on the track data. You can modify these values to cover the range of values over multiple tracks. This allows you to create multiple histograms of the same range and bin width across multiple tracks.

• Direction
• Speed/Moving average speed/Smoothed speed
• Bending angle (mid-point)
• Wavelength

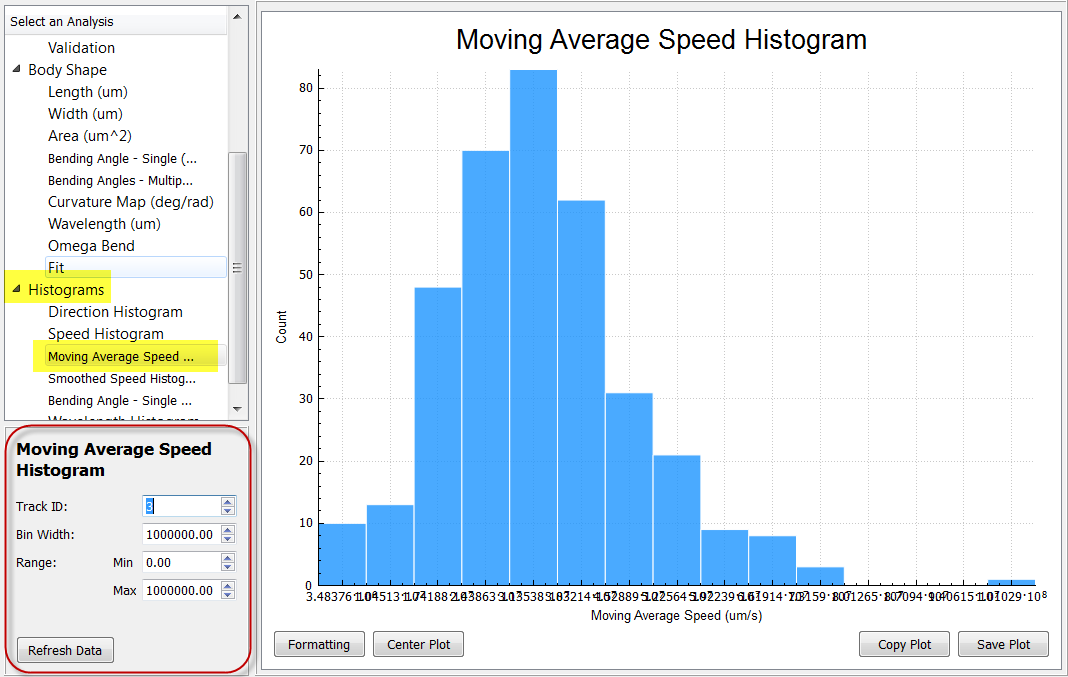

For each histogram, you can:

• Select a track to display the data associated with that track (Track ID).
• Modify the bin width to compare data easily.
• Modify the measurements' range.

Click Refresh Data upon modifying values to update the display for both the data in the table and the histogram.
