Image Stack overview
The Image Stack module allows you to focus through an image stack in real-time. The program automatically keeps track of the depth (Z-axis) values while you
File formats supported
| MBF JPEG2000 (.jp2; .jpx; .jpf) | MBF Tiff (.tif; .tiff) | JPEG2000 (.jp2; .jpx; .jpf) |
| Tiff (.tif; .tiff) | Bit Map (.bmp) | JPEG (.jpg, .jpeg) |
| ZSoft (.pcx) | PNG files (.png) | TARGA files (.tga) |
| Olympus Fluoview (.tif) | Portable Image (.pgm; .pbm; .ppm) | BioRad Confocal Image (.pic) |
| FlashPix (.fpx) | Zeiss Confocal LSM (.lsm) | Zoomify (.pff) |
| DICOM (.dcm) | ANALYZE (.img) | NanoZoomer (.ndpi; .vms; .vmu) |
| Aperio SVS (.svs) |
Loading image stacks
The X and Y dimensions of the imported image default to the current lens.
Select the lens that was used to capture the images before loading the image stack.
If the image stack was collected on a different microscope:
- Calibrate a lens for the remote system. See Creating a new lens based on a calibration grid slide
- Select that lens before loading the image stack.
Load a single image stack file that contains all the planes
- Click File>Image Stack Open to open the Image Stack Open dialog box.
- Select an image file, and click Open.
- Click OK. The program displays the Image Scaling and Placementdialog box.
- Enter a focal distance (Distance between images). See Image scaling .
- Click OK to load the image stack.
Load an image stack composed of multiple files
- Click File>Image Stack Open to open the Image Stack Open dialog box.

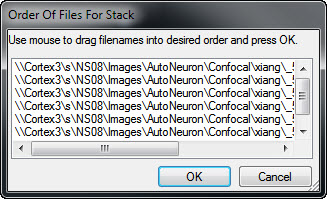

- Select the images and click Open. The program displays the Order of Files for Stack dialog box
.- If the files are not in the proper order, you can drag them in the list until the order is correct.
- Click OK. The Image Scaling dialog box is displayed.
- Click OK to load the image stack.
If you load an image for which there is no matching lens, the program prompts you to create a new lens to match the image scaling. SeeCreating a lens.
Viewing image stacks
The top image of a stack is loaded at the current Z position of the software. When the stack is loaded, the top image of the stack is displayed.
The status bar at the bottom of the screen provides information about the plane on display.
- To navigate through the stack, use the Page Up and Page Down keys on the keyboard.
- To view the Z position, use the Z meter or the Image Organizer.
- To visualize an entire image stack in a single plane, use Image>Maximum Intensity Projection | Minimum Intensity Projection.
Saving image stacks
Save Image Stack automatically opens following the acquisition of a stack.
- To save the modified stack without altering the original file, use File>Save As>Image Stack.
- To save a projection image, use File>Save as>Image Stack Max (or Min) Projection.
- To save a single plane, use File>Save as>Image.
See Image Adjustment to learn how adjustments are saved.
Tracing from image stacks (Neurolucida only)
Tracing from image stacks is similar to tracing from a single tissue section.
The program keeps track of the Z-depth of your tracing by recording the Page Up and Page Down movements through the sections.
When working with multiple adjacent image stacks, there are two methods:
- Trace all visible structures in a given stack before moving to the next adjacent stack. Make sure to connect the endings of the incomplete processes.
- See Tracing trees: endings to learn about ending types.
- See Tracing neurons in serial sections (2D) to learn about tracing through sections.
- Follow a given structure through the stacks while tracing.
There is no need for the Serial Section Manager since the program treats the different images of the stack like different focal depths of the same section.
Image order and nomenclature
Single file with multiple images
A multiple-image file such as a PIC or TIF file contains all of the images for one image stack.
The images are interpreted to be sequential images with the first images placed at the top of the stack and subsequent images placed at decreasing Z positions.
The first image is placed at the current Z position.
Multiple single-image files
The order in which multiple images from single-image files are loaded is determined by the order of the files in the dialog box.
We recommend using a naming convention that facilitates image ordering.
If you name a set of images image1, image2, image3, and so on, image10 is placed after image1 but before image2.
Instead, number the images as follows: image01, image02...image10, image 11... in order to maintain the correct order.
The images are loaded in the same order as the files appear in the File>Open dialog box.
