Placing Spines
See the AutoSpine workflow or Neurolucida 360 to detect spines automatically and assign different visual representations to different spine types.
Before you start
- To select spine types easily, drag the Spines toolbar onto the tracing window.
- Before placing spines, select a spine type.
- For a live image: We recommend that you trace the tree(s) and place the spines associated with the tree(s) during the same session.
I traced the tree during a previous session. What do I do?As you re-open Neurolucida for a second session, you may set the reference point at a different Z position. As a result, spine length data may not be valid.
- If you started a second session and set the reference point in a different location, re-align your tracing in Z (before placing spines) by using the Joy Free mode and the Z filter in the Orthogonal View.
Although the spine types are represented by different shapes in the toolbar, each spine placed manually is represented as a sphere regardless of the spine type selected.
Placing spines manually
There are three methods to place spines manually: Two-click & single-click methods (for which you need to trace the dendrite before placing spines) and spine-to-tracing method (for which you can place spines while tracing):
Placing spines with the two-click method (default)
- The dendrite is already traced.
- Select a spine type from the Spines toolbar.
- Optional: Adjust the size of the spine head by scrolling the mouse wheel. If mouse wheel focus is enabled, hold down CTRL and scroll the mouse wheel.
- Click to place the spine head center.
- Move your cursor over the traced dendrite; a rubber line appears.
- Click and release the mouse; the spine is placed.
- Click the spine icon again to disable the Spines mode and return to tracing.
Placing spines with the single-click method
- The dendrite is already traced.
- Select a spine type from the Spines toolbar.

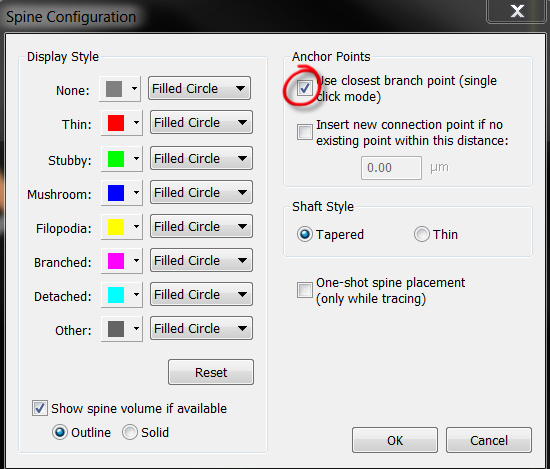

- Right-click and select Spine Settings; the Spine Configuration window opens.
- Under Anchor Points, check the Use closest branch point (single click mode) checkbox
. - Optional: Adjust the size of the spine head by scrolling the mouse wheel. If mouse wheel focus is enabled, hold down CTRL and scroll the mouse wheel.
- Click to place the spine head center; the spine's neck is placed on the closest branch point.
- Click the spine icon again to disable the Spines mode and return to tracing.
Placing one spine then automatically returning to the Tracing mode (spine-to-tracing method)
- Select a spine type from the Spines toolbar.

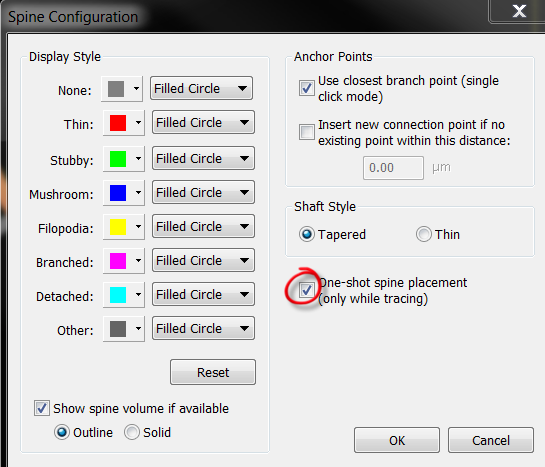

- Right-click and select Spine Settings.
- Make sure that One-shot spine placement (only while tracing) is selected
. - Optional: Adjust the size of the spine head by scrolling the mouse wheel. If mouse wheel focus is enabled, hold down CTRL and scroll the mouse wheel.
- Use the two-click or the single-click method to place one spine.
- Neurolucida automatically returns to tracing.
To perform a quantitative analysis of the spines, use the Spines analysis available in Neurolucida Explorer.
