Branched structure

Branched structure includes a variety of analyses useful to quantify morphometric features.

View our PDF guide to help you determine what analysis to use.

Each treeMarker totalsSegmentTerminal distance
Individual markerNearest terminationSegment pointsTerminals
Individual treeNeuron summarySpinesTree intervals
Layer lengthNodesSynapsesTree totals


Varicosities

(Neurolucida 360 only)

Procedure

  1. Click Analyze>Neuron data>Structure .
    • Select All Possible Analyses: All available Branched Structure analyses are performed. Available analyses vary depending on the types of structures selected.
    • Select No Analyses: Clears all selected analyses.
  2. Select analyses and click OK. Neurolucida Explorer opens a separate report window for each selected analysis.

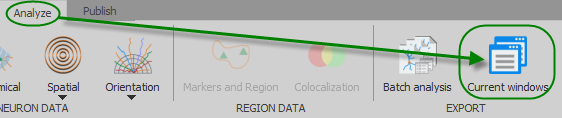

  3. Save and export the analyses to a single Excel file: Use Analyze>Export>Current windows.



See Batch analysis option in Exporting to Excel
