Exporting a monochrome image with a scale bar

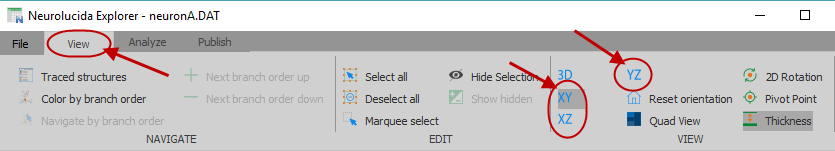

1. Select a 2D view: In the View ribbon, click XY, XZ or YZ.
2. Add the scale bar:
   1. Select Scalebar settings from the Publish ribbon.

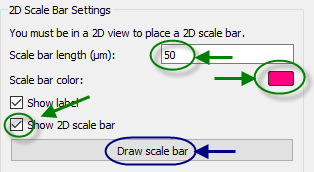

   2. In the Scalebar settings panel under 2D scale bar settings, enter the length, select a color, select the Show 2D scale bar box then click the Draw scale bar button.

      Scale bar color: Don't use white or black or you might not see the bar in monochrome!

   3. Click in the tracing window to place the scale bar.
3. Export the file:

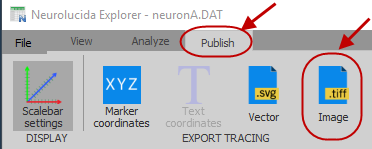

   1. Select Image from the Export Tracing group in the Publish ribbon.
   2. Select the Monochrome box and click the Save file button.
   3. Select an image format.
