Register sections

400, 402, 406

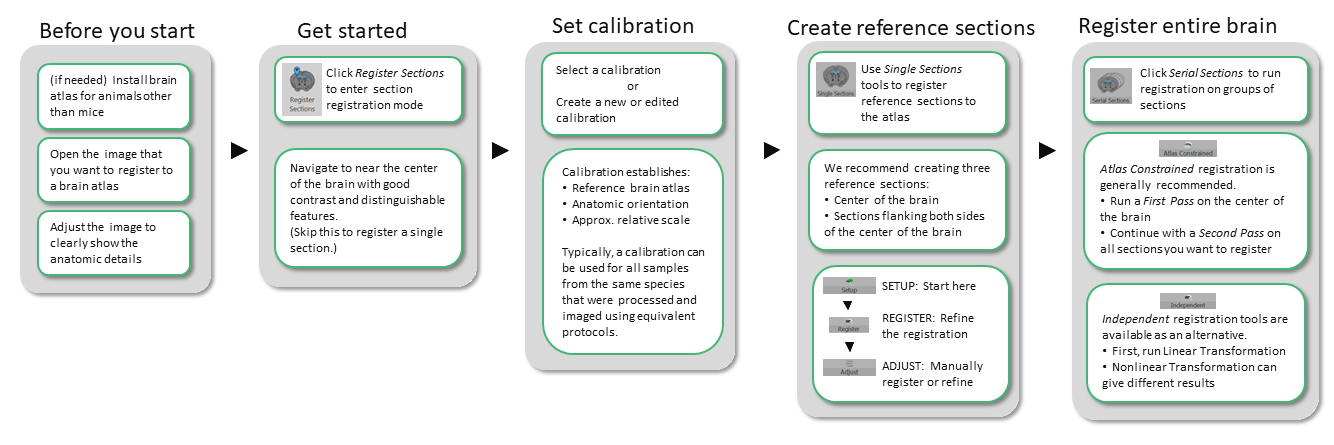

Purpose

Use Register Sections to align images of individual serial sections or 3D reconstructions, created using the Serial Section Assembler workflow, to a reference-brain atlas. The Register Sections tools are designed for images in which each image plane in the file was acquired independently, typically from sections on a slide.

Use Register volume rather than Register Sections if you're working with 3D images obtained from cleared tissue, blockface images, or any tissue that was imaged whole.

See also Registration windows and tools reference for an overview of the "registration mode" software interface and tools that are available when registering either serial sections or image volumes acquired from unsectioned tissues.

Before you start

1. Mouse brain atlases are installed when NeuroInfo software is installed. If you are working with images from animals other than mice, our download center may have an atlas for your species. Alternatively, brain atlases can be configured for use in NeuroInfo.

   Click here for instructions on installing brain atlases from our download center and configuring atlases for use in NeuroInfo.

2. Open an image of a single section or an image stack of a 3D brain reconstruction, created for example, from images of serial sections using the Serial Section Assembler workflow, using any of the following methods:

   • Drag and drop the file onto the NeuroInfo software window.

   • Click Open an image file button in the Quick Access bar or type Ctrl+O.

   • Go to File > Open > Image Stack.

3. Using the Image Adjustment tool (available on the Workspace ribbon), we recommend making the following adjustments:

   • Display only the color channel(s) with the anatomic information that you want to use for alignment. Deselect the other color channels so that they are not displayed.

   • Choose a light color, such as yellow, pale orange or pale grey to display the selected color channel(s).

   • Adjust the histogram so that structures in the image are clearly visible.

   • what about the image filtering tools, should we talk about them? how about illumination/background/flatfield correction?

Register sections tools reference and descriptions

Following are descriptions of the tools available for registering sections to a brain atlas; they are organized as they appear in the NeuroInfo Register Section to Atlas panel, which represents the generally recommended order for use. Note, however, that these tools are flexible and can be used in different sequences, depending on the experiment and user preference/experience.

	Single Sections: Tools for registering individual serial sections to the reference-brain atlas. This is a good place to start the registration process.

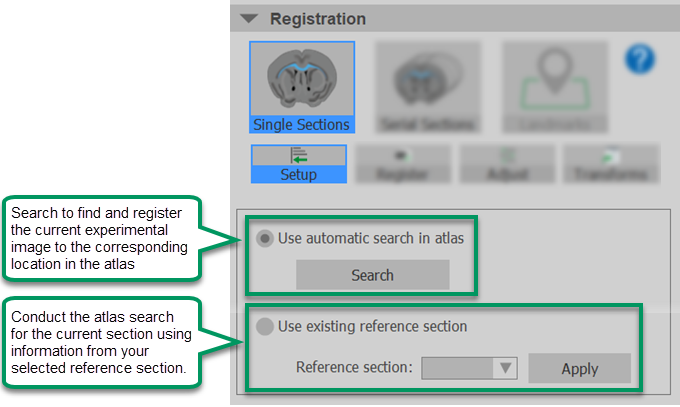

		Setup: Tools for initializing registration of the current section by searching the entire atlas or using a previously registered section to inform the atlas search/registration process. Use automatic search in atlas: Choose this option to establish the atlas location, sectioning angle, and scale relative to the atlas for the current image plane when no other sections have been registered or when you want NeuroInfo to register the section independently, that is, without considering the registration of other sections in the image volume. Click Search to start the search. A progress window opens while the search runs and closes when it is complete. The resulting transform will be displayed in the Transforms panel. Use existing reference section: Choose this option to find the current image plane in the brain atlas using select registration parameters (or should just say "information"?) from a previously registered reference section. Select the Reference section from the drop-down menu; and click Apply to start the search
		Register: Tools for refining the registration of the current section. Or should we say "Tools for refining the registration of the current section or automatically registering it." OR flip it around and say "Tools for automatically registering the current section or refining its registration; this is an alternate place to start the registration process."?. Linear transformation: Applies a uniform set of transformation parameters to the entire section. We recommend trying linear transformation first and evaluating the results. Nonlinear transformation: Applies a transform that is non-uniform across the section. Nonlinear transformation can improve the registration of a section in some cases; we recommend trying it if the results of linear transformation do not meet your expectations.
		Adjust: Tools for interactively (manually) registering or refining the registration of a section by moving, scaling and deforming the atlas slice image so that it aligns with your experimental image slice. Use the sliders to Shift, and adjust Rotation and Scale to transform the atlas slice so that it matches the experimental slice image. The sliders are labeled as follows: D and V: dorsal and ventral R and C: rostral and caudal L and R: left and right Clear transform: Click to clear the atlas transform Note that one of the Shift sliders (which one depends on the specimen orientation) changes the brain-atlas plane (section) displayed. Use it to display the section of the atlas brain that most closely matches the experimental section displayed. It's helpful to turn the atlas overlay on and off as you align the images. Do this by toggling the checkbox and/or adjusting the slider to Show atlas over experiment slice in the Visualization Options section of the panel. Moving any of the sliders creates a transform. To finalize a transform, move to a different experimental section and the adjustments made to the previous section is stored as a transform. I want to make a short video here
		Transforms: View and manage a list of transforms created by registering sections. Use the Transforms controls to designate transforms as reference sections for registration of other sections, quickly jump to a section in the Experiment Slice pane of the display, and delete transforms that you want to remove from your results.

	Serial Sections: Tools for registering all or some serial sections to the brain atlas in a single operation after you have created reference sections using the Single Sections tools.
		Atlas constrained: We recommend using this method to register your experimental images to the atlas. Each section is registered to the atlas using a transform with some independent parameters and some shared parameters. You must have already created appropriate reference sections to use this tool. The First Pass registration establishes registration parameters based on the anatomic-feature rich core of the brain that will be used in the Second Pass to assist with registration of the non-core areas of the brain that, in general, have a more homogeneous appearance. Run the First Pass on the center of the brain, i.e., for a coronally oriented brain, register the are that lies between the rostral and caudal reference sections described for creating reference sections. Next, run the Second Pass on the entire brain or all of the sections of interest.
		Independent: Each section is registered to the atlas via an independent transform with the option to lock some parameters based on a selected reference section , e.g.,? are the fixed parameters sectioning angle and relative scale?. This is an alternative to Atlas Constrained registration. * Reference section: Choose the reference section that is can you suggest how they choose if they have set up 3 ref sections as we recommend?. Linear transformation: Applies a uniform set of transformation parameters to the entire section. We recommend trying linear transformation first and evaluating the results. Nonlinear transformation: Applies a transform that is non-uniform across the section. Nonlinear transformation can improve the registration of a section in some cases; we recommend trying it if the results of linear transformation do not meet your expectations.
		Transforms: View a list of sections that have been registered and manage the resulting transforms. Use the Transforms controls to designate transforms as reference sections for registration of other sections, quickly jump to a section in the Experiment Slice pane of the display, and delete transforms that you want to remove from your results. (This tool is in both the Single and Serial Sections set of tools; see above for details).

LandmarksNot available yet, but coming soon: Tools for marking structures of interest (fiducial points) in your images to direct their registration to the atlas.

LandmarksNot available yet, but coming soon: Tools for marking structures of interest (fiducial points) in your images to direct their registration to the atlas. (table repeated to see which I like better)

Procedure

A. Getting started

1. Click Register Sections in the NeuroInfo tools section of the Registration ribbon.

   • The Register Section to Atlas window opens on the right; this is where you'll do most of the work.

   • The Registration ribbon displays functions relevant for registering sections to the atlas.

     Other tools are displayed once you click Leave Registration.

2. If you are working with a 3D brain reconstruction image: Navigate to a section near the center of the brain that exhibits good contrast and distinguishable features, such as the hippocampus and fiber tracts, using the 3D Slice Scroll slider or the Orthoview tool.

B. Select, verify, or create an atlas calibration [Current calibration section]

Context

Calibration provides NeuroInfo with enough information about how your 3D reconstruction relates to the reference-brain atlas to enable the effective use of automatic registration (alignment) tools. It establishes:

• the brain atlas you are using as the reference

• the anatomic orientation of the experimental image data

• approximate relative scaling of the brain specimen(s) to the atlas

Do one of the following to set the calibration:

• Expand the Current calibration section at the top of the Register Section to Atlas panel. (Click the thumbnail for 10 sec video showing how to expand the Current Calibration controls.)

• Select an appropriate calibration from the list. You can typically use the same calibration for registering brain specimens from the same species that were processed and imaged using equivalent protocols.

• Create a new calibration in the following circumstances:

  • the first time you use NeuroInfo

  • for images of specimens processed and/or imaged using a different protocol (and there is not a corresponding calibration in NeuroInfo)

  • to work with images from other species

• Change an existing calibration to reflect different processing or imaging protocols, or to test alternate calibration settings.

C. Create reference section(s)

Context

Reference sections are images that have been aligned to the brain atlas you're using; NeuroInfo can use reference sections to register other sections of the experimental brain to the atlas. When choosing a reference section (or sections), look for familiar, visually distinctive features that will help enable you and NeuroInfo software to accurately align the sections to the reference brain atlas.

We routinely create reference sections at the following anatomic feature locations in coronally sectioned brain (click thumbnail images to see them full size):

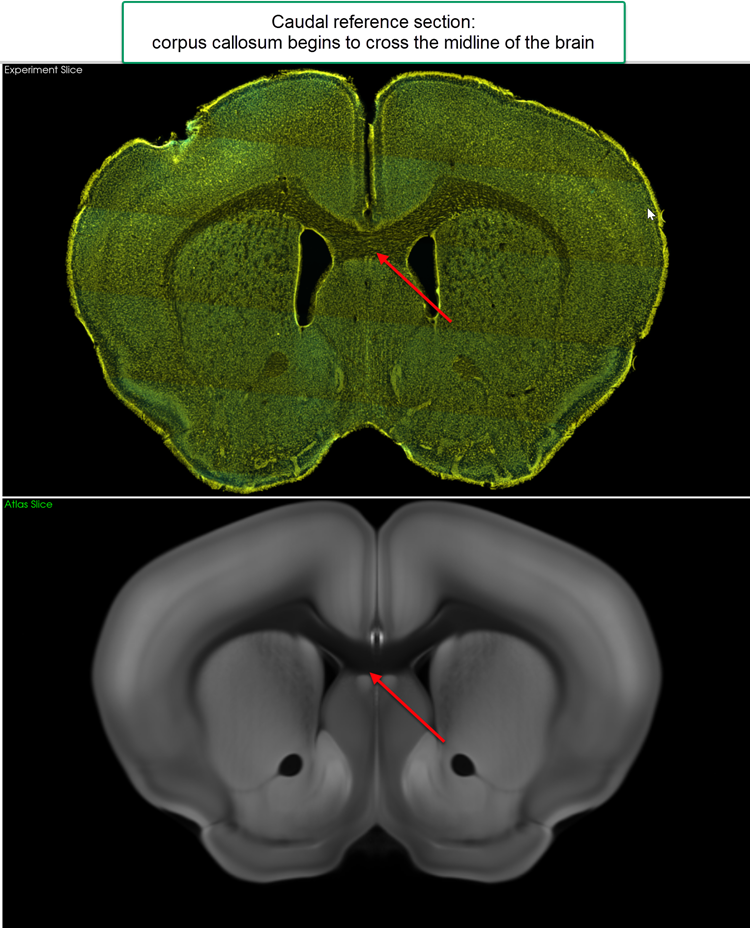

• Caudal: the corpus callosum begins to cross the midline of the brain

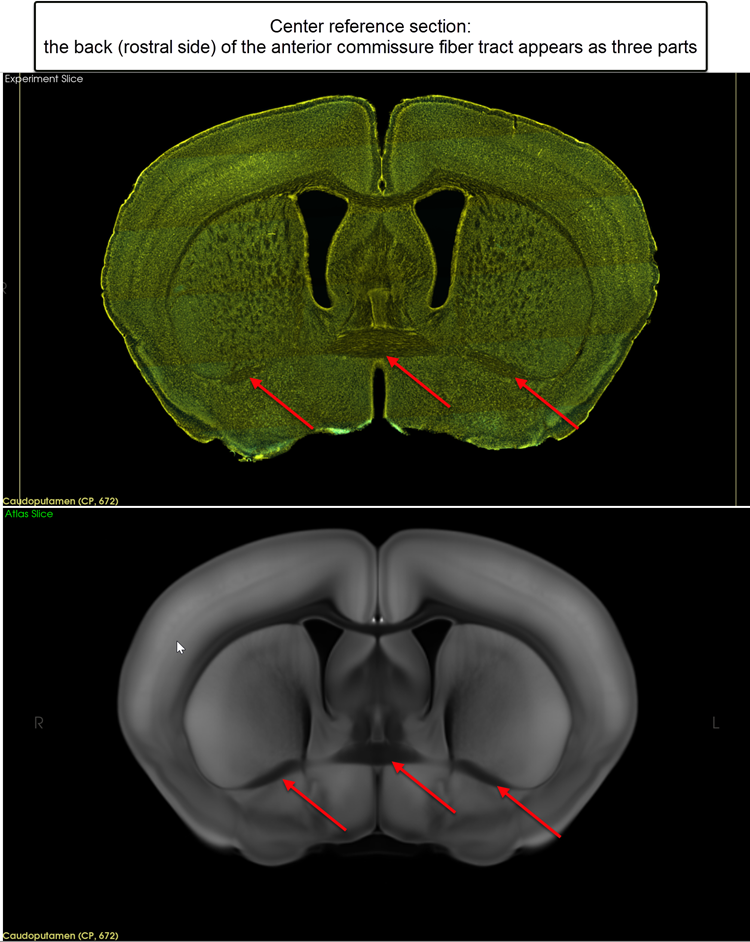

• Center: the back (rostral side) of the anterior commissure fiber tract appears as three parts

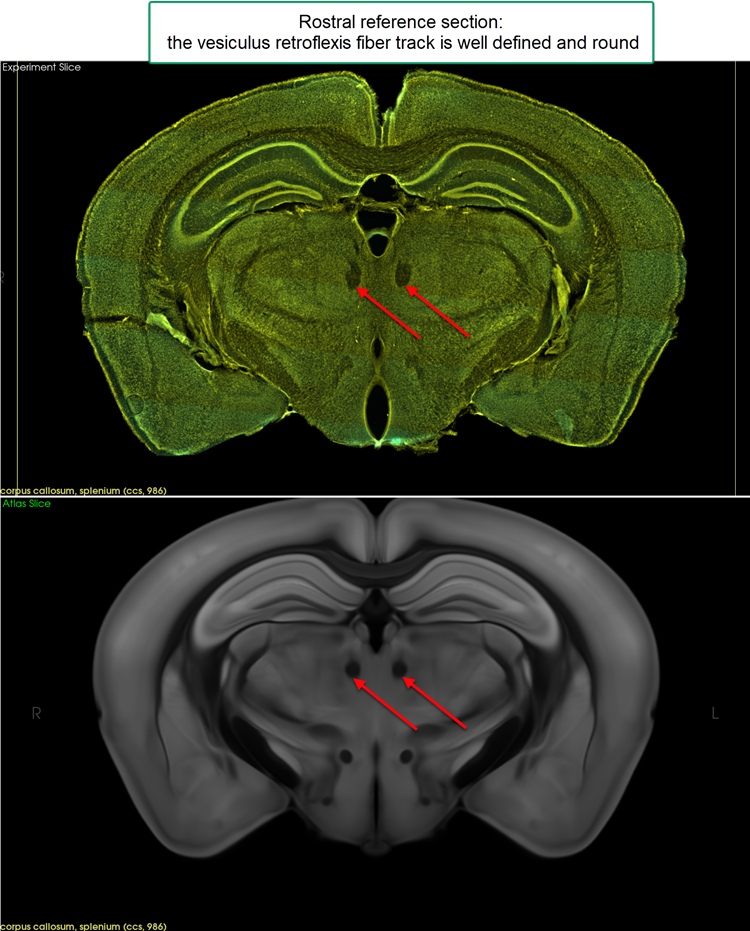

• Rostral: the first section in which the vesiculus retroflexis fiber track is round

Procedure for creating reference sections

1. In the Experiment Slice panel (top right), navigate to the section you want as a reference section in the experimental brain image using use the 3D Slice Scroll slider or the Orthoview tool. Take note of the section number displayed at the top of the 3D Slice Scroll panel.

   You may want to turn the atlas overlay off as you navigate to the reference section; uncheck the Show atlas over experiment slice box or adjust the slider in the Visualization Options section of the panel.

2. Expand the Registration section of the Register Sections to Atlas panel and

   click Single Sections.

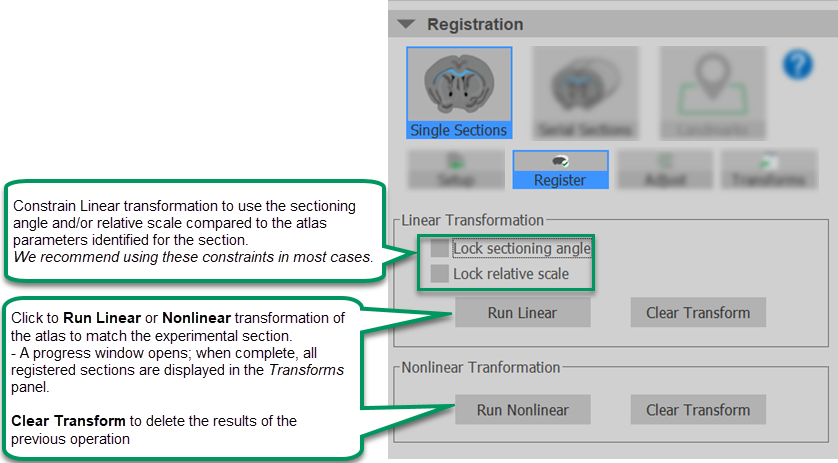

3. Use the setup, Register, and/or Adjust tools to register the section to the atlas. These tools are described in the table above.

   1. do we want this step? (optional, but recommended) Regardless of the method used initially, you can refine the alignment between atlas and experimental section with the Run linear registration .

   2. If needed, you can repeat any of these registration steps to further refine the alignment.

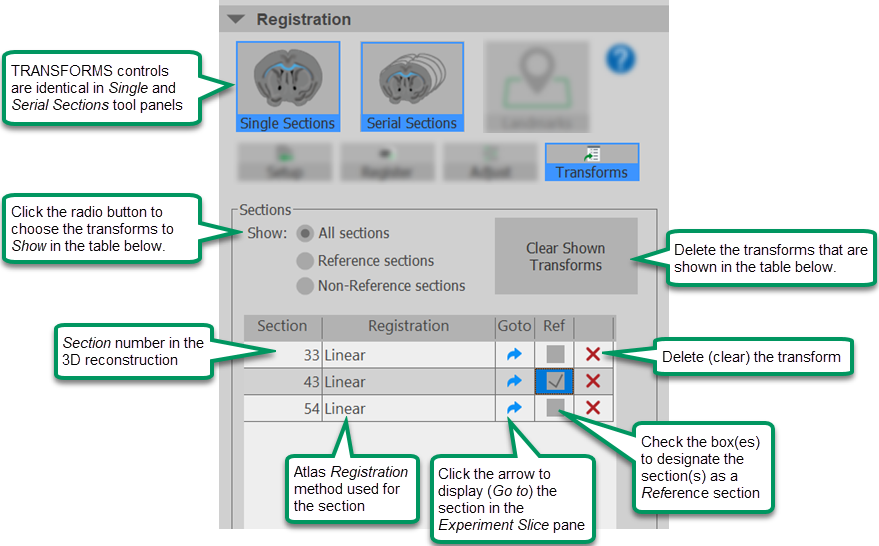

4. Click Transforms to view each registered section in the data file associated with the current image volume. Designate some or all of the registered sections as Reference sections by checking the box in the Ref column of the table.

D. Register the other sections of interest (or the entire 3D brain reconstruction)

Context

Once you have well-registered reference sections, you can use the automatic tools to register the other sections that interest you, up to and including the entire brain volume. (table repeated to see which I like better)

Once you have well-registered reference sections, You can use the automatic tools to register the other sections that interest you, up to and including the entire brain volume.

We recommend that you use the Atlas Constrained registration method; it employs advanced machine-learning, image-based linear registration algorithms and is likely to offer the best results. Instructions for atlas-constrained registration are below. (is that why we recommend it?)

Alternative Independent registration tools for processing multiple sections at once are also available

Procedure for using Atlas Constrained transformation to register multiple sections at once

1. Click Serial Sections in the Registration section of the panel, then

   click Atlas Constrained.

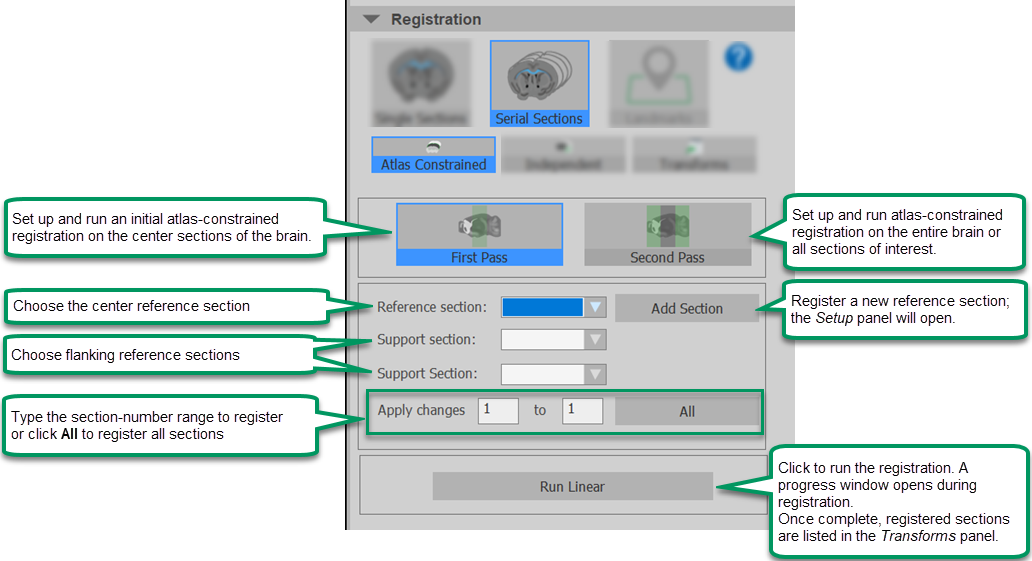

2. Click First Pass to set up and run registration of the center of the brain as follows:

   1. Choose a Reference section at or near the center of the brain from the drop-down menu.

      If reference sections have not already been registered, click Add Section to create a reference section; the Setup tool in Single Sections will open.

   2. Choose two Support sections that flank the center of the brain.

      NeuroInfo autofills the region to register (Apply changes fields) that include the area between the support sections that are entered. You can change this if desired, but this first pass should include only the center X–X% of the entire brain.

   3. Click Run Linear to register the selected range of sections to the atlas. A progress window will display the registration operations. When complete, all of the sections that were registered can be viewed by clicking Transforms.

3. Click Second Pass to set up and run the registration of the entire brain or all of the sections of interest.

   The procedure is largely the same as for the First Pass registration. The difference is that you select only one reference section:

   What do we recommend for choosing the ref section here?

4. What is the final step? to have a look at the results? talk about how they can repeat things if wanted/needed?

Procedure for using Independent transformation tools to register multiple sections at once

1. Click Serial Sections in the Registration section of the panel, then

   click Independent.

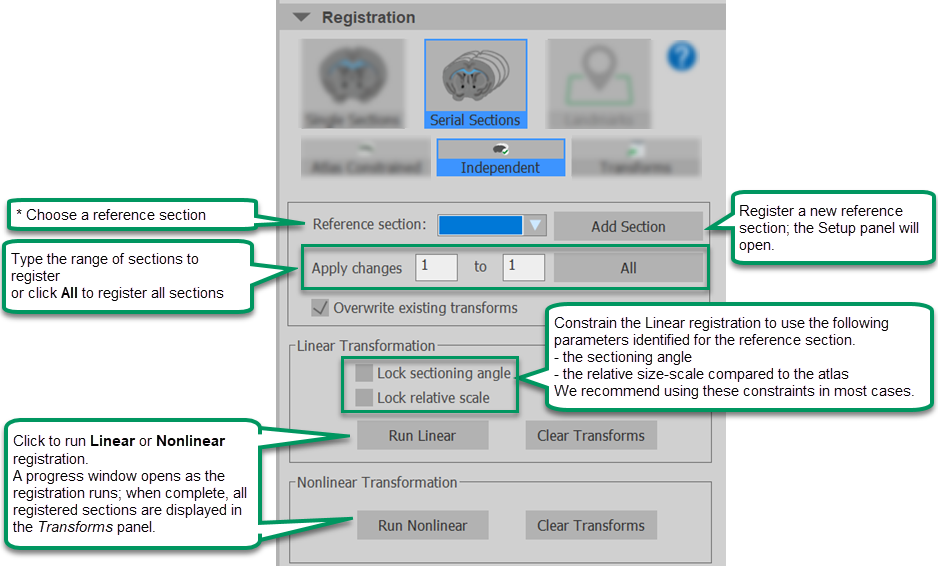

2. Choose the sections to register and the reference section for the transformations:

   • Reference section: Select a well-aligned section that has already been registered from the dropdown menu; it will be referenced for both Linear and Nonlinear registration refinement of additional sections.

     If a reference section has not already been registered, click Add Section to create a reference section; the Setup tool in Single Sections will open.

   • Apply changes: Type the range of sections to register or

     Click All to include all sections.

   • Overwrite existing transforms: Check to overwrite any existing section registrations when you run the registration.

3. Run Linear or Nonlinear transformation of the selected sections:

   • (this is from the last release...still valid?) We recommend that you Run Linear first, evaluate the precision of the alignment for each section individually, then repeat the Linear registration or click Run nonlinear and re-evaluate the alignment.

   • Repeat the registration of each section multiple times if desired. Running the registration algorithms multiple times will update and potentially further improve the registration result.

   Running Linear Transformation

   • Lock sectioning angle: Check to hold the sectioning angle constant using the angle identified for the reference section.

     We recommend using this constraint in most cases; the sectioning angle identified near the center of the brain, where there is good contrast and multiple distinguishable features is typically more accurate than sectioning angle identified in parts of the brain with less contrast and more homogeneous anatomies.

   • Lock relative scale: Check to use the relative scale (compared to the atlas) identified for the reference section and keep the registration scale parameter constant while running a linear registration.

   Run linear/Clear Transforms: Click to run linear transformation, with the selected constraints/ Clear the resulting transforms

   Running Nonlinear Transformation

   Click to run nonlinear transformation to refine the alignment of the selected section(s) / Clear the resulting transforms

4. What is the final step? to have a look at the results? talk about how they can repeat things if wanted/needed?

E. Save your work. Do we want a "save your work" step? Below is from the last version:

• Save the data file by clicking Save in the quick access menu, typing Ctrl+S, or by going to File > Save > Data file.

• > Save your transform set by clicking Registration transforms on the Registration ribbon, then Save transform set from the drop-down menu. The transform set includes atlas-transformation information for each section that was registered.

F. Identifying anatomical structures

Once you have registered (aligned) one or more sections to a reference atlas, you can accurately identify atlas structures in your experimental image(s) as follows:

• See the name of the anatomical structure at the cursor location: Hover your mouse over the Experimental or Atlas Slice images (top and bottom images on the right) to display the name of the brain structure in the lower left corner of the image panel.

• Display the outline of the anatomical feature:

  • Ctrl + click the location with your mouse

  • Click Select Anatomy in the Registration ribbon and click the location with your mouse.

    Click Deselect Anatomy to turn off display of anatomical structures.

  • Click the check box for the structure name in the list displayed on the Atlas Ontology tab to display its outline. Uncheck the box to stop its display.

Learn more about identifying anatomical structures and using the Atlas Ontology tools.

Learn about Mapping experiments to/from the atlas
