Designate regions of interest with bookmarks

You can designate a region of interest (ROI) by selecting an XYZ location at a zoom level of your choice and creating a bookmark.

A bookmark is a hyperlink to the ROI that you can share with other Biolucida users.

ClosedViewing a bookmarked location

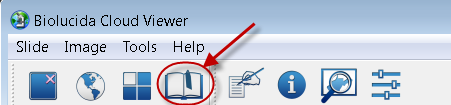

  1. Click the Bookmarks button to open the Bookmarks panel (the panel might already be open).

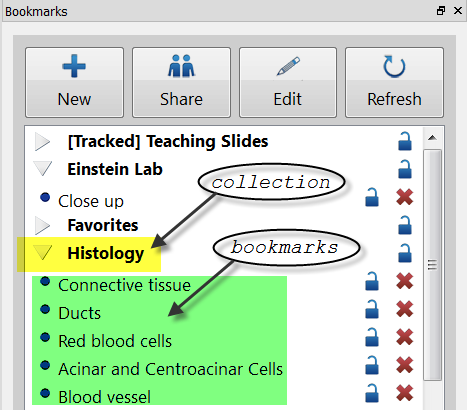

  2. In the Bookmarks panel, click the name of a collection (preceded by an arrow).
  3. Double-click the name of a bookmark (preceded by a bullet).
ClosedCreating a bookmark
  1. Zoom in to the ROI in the image.
  2. Click the Bookmarks button to open the Bookmarks panel.
  3. In the Bookmarks panel, click the New button.
  4. Enter a description; the description is used as the bookmark's name.

The new bookmark is added to the Bookmarks panel, under the name of the collection the image belongs to.

  1. To prevent users from navigating away from /zooming out of the bookmarked region, click the Lock icon to lock the location and zoom level.
ClosedEditing the name of a bookmark
  1. Click the Bookmarks button to open the Bookmarks panel (the panel might already be open).
  2. In the Bookmarks panel, click the name of the bookmark to select it.
  3. Click the Edit button to open the Bookmark window.
  4. Enter a new description/name in the Description field and click Done.
ClosedSharing a bookmark
  1. Click the Bookmarks button to open the Bookmarks panel (the panel might already be open).
  2. In the Bookmarks panel, click the name of the bookmark.
  3. Click the Share button. The URL to the bookmark is copied.
  4. Paste the URL in an email or chat message.

Creating /editing/deleting bookmarks requires an Administrator account or a Viewer account with Maintainer/Full role (see About Biolucida users).



Also see Annotations, Organizing images
