Analyze Results (validation)

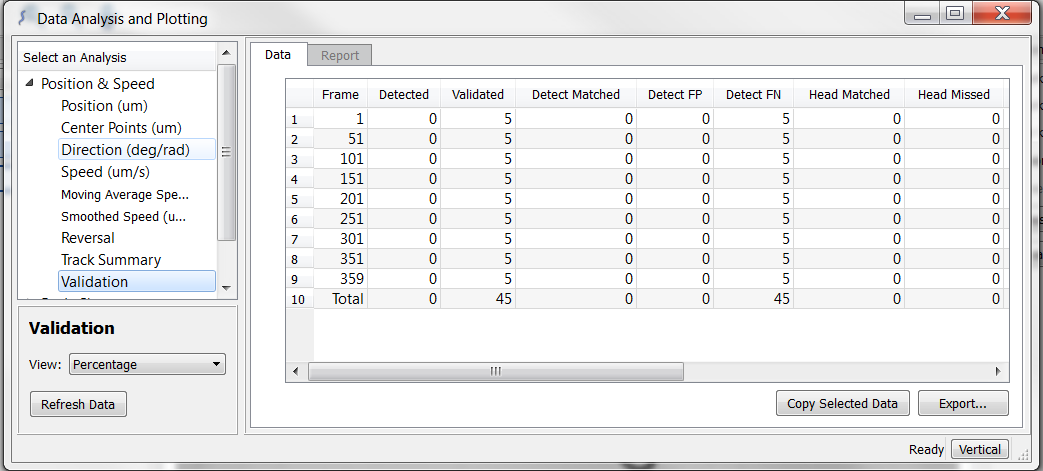

WormLab opens the Data Analysis and Plotting window and displays your data.

The data updates automatically as you change marking.

Data provided

WormLab provides validation data by Count or Percentage.

Detect FN: Number or percentage of false negative matches. A false negative is a worm you marked that wasn't detected by the software.

Detect FP: Number or percentage of false positive matches. A false positive is a software-detected worm that you didn't mark. The most likely reason for a false positive is that the object detected is not a worm.

Detect Matched: Number of worms or percentage detected by the software and that you matched

Detected: Number of worms detected by the software

Frame: Frame number

Head Matched: Number or percentage of heads matched by you and the software

Head Missed: Number or percentage of heads missed by the software

Head/Tail Measurement Error (µm): Distance error in µm for marking head/tail between you and the software. This is an accuracy measurement.

Total (row): Total across all validation frames

Total for Head/Tail Measurement Error (row): Average of all Head/Tail Measurement Error values

Validated: Number of worms marked



If you click File>Save Project, WormLab saves the project with the validation data.
