Macro View

Purpose

The Macro View window provides an aerial view of the entire tracing (with or without images). The view is a top-down perspective along the X and Y axes (as in the Main window). Open it by clicking the Macro View button on the Trace or Workspace ribbon.

Navigating using Macro View

Quickly move to a specific part of the image outside of the current field of view:

• In the Macro View window, click the position you want to view; the area you clicked will be displayed in the Main window.

Macro View buttons/options

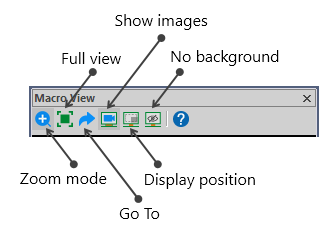

To use the options, click the button in the Macro View window; most are also available by right-clicking in the Macro View window.

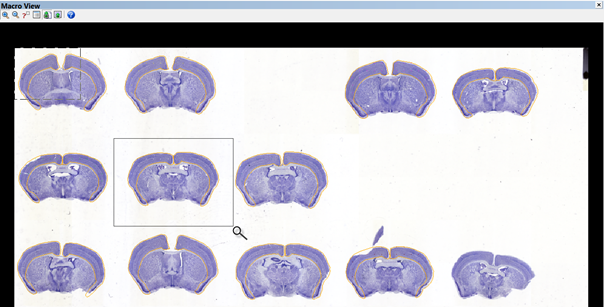

	Zoom mode: Draw a marquee Draw a rectangle by dragging your mouse from the top left corner to the bottom right corner. around an area of interest in Macro View to zoom in on it. This does not affect the image displayed in the Main window.
	Full view: Displays the entire tracing or image in the Macro View window.
	Go To: Jumps the display in the Main window to the point clicked in the Macro View window.

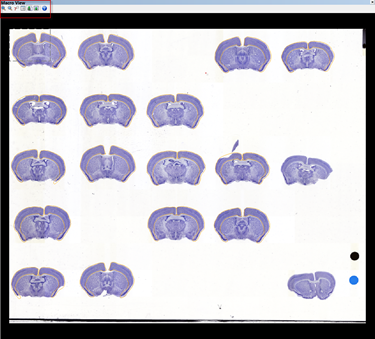

	Show images: Image(s) are displayed along with any tracings and/or markers.

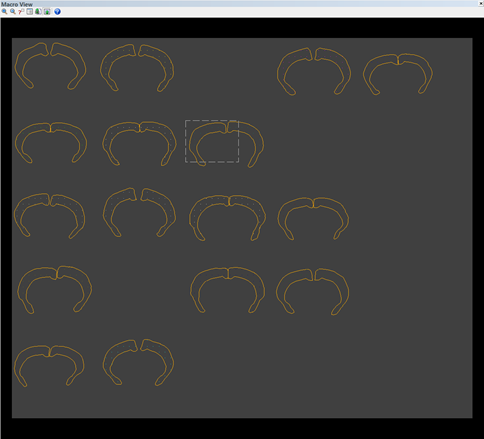

	Display position: Displays the tracings and markers overlaid on a gray background in the position that they appear within the image.

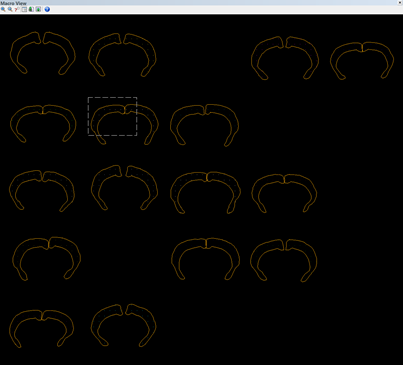

	No background: Displays tracing or markers only over a clear background.
