(Image) Adjustment

Image Adjustment allows you to make changes to the way the program displays the current image.

Image Adjustment Options

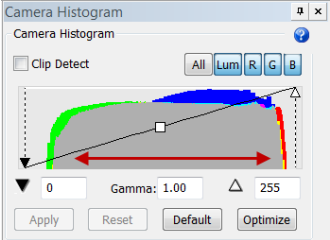

Displays a graphical representation of the tonal values in the image.

  • Black point: The point at which solid black occurs (black triangle).
  • Gamma: Controls the overall brightness of an image.
  • White point: The point at which solid white occurs (white triangle).

All channels are initially displayed.

If Ungroup Color Channels is checked, each channel is listed and may be modified.

To hide a channel, clear the check box next to it.

Apply changes to stack: Changes are applied to each image in the image stack.

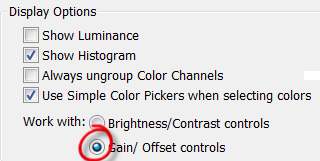

You have the option to display Gain and Offset instead of Brightness and Contrast:

  • Click Show Options.
  • Under Display Options, next to Work with, select Gain / Offset controls.

Reset: Resets the image to its original settings up to the last save.

Default: Sets the Black Point to 0 and the White Point to the highest value available for the image's bit rate.

  • For an 8-bit image, the highest White Point value is 255.
  • For a 12-bit image, the highest White Point value is 4095.

Optimize: Sets the Black Point to 0 and the White Point to the brightest value available for a pixel. You can apply this command to one or more selected channels at a time.

Show Luminance: Only available if the channels are grouped.

Use Simple Color Pickers when selecting colors: Determines which color the program displays.

Optimization Options: The More button allows you to adjust the optimization settings.

Channel mixing:

Add

Adds the values of the selected channels. The resulting value is never higher than the highest value available, 255 for 8-bit images, 4095 for 12-bit images, etc.

Example for an 8-bit image:

  • Red channel: 100 / green channel: 20 / blue channel: 200
  • The total value is 255 because 255 is the maximum value and 255<100+20+200.
Max

Uses the maximum value of the channels.

Example for an 8-bit image:

  • Red channel: 60 / green channel: 230 / blue channel: 225
  • The resulting value is 230 because 230 is the maximum value out of the three channels.
Average Displays the average value of all channels.

Saving image adjustments only

Virtual image mode Stack Command Also Required
√ √ File>Save as>Image Stack>Stack
√   File>Save as>Image
  √ File>Save as>Image Stack>Stack

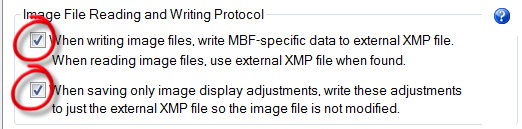

Before you use Image Save/Image Stack Save:

  1. Click File>Preferences>Images.
  2. Under Save:

    * Check the "When writing image files..." box.

    * Check the "When saving only image display adjustments..." box.

    File>Save as>Image
