High Bit Depth

Applicable to a file with a bit depth greater than 8.



"Always ask" is NOT checked in the Options>General Preferences>Imaging tab

Stereo Investigator applies the settings displayed under When Image Bit Depth is Unknown in the Imaging tab.





"Always ask" is checked in the Options>General Preferences>Imaging tab

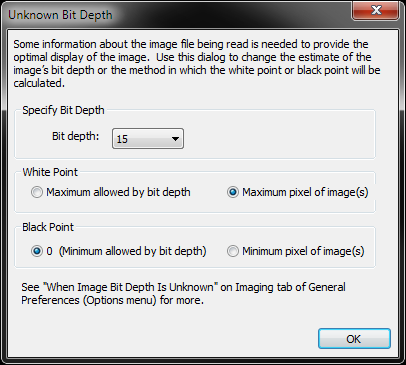

  1. Specify the settings in the Unknown Bit Depth window. Remember that your choice for bit depth only affects the display of the image, not the underlying data.

    2. ClosedUse Max Pixel

    Neurolucida selects the lowest bit depth that includes the highest pixel value found within the image.

    Example:

    If the highest pixel value found in the image is 3965, then the minimum bit depth that could include this value is 12 since the range for a 12-bit image is 0-4096 (4096=212). Neurolucida will use 12 as the bit depth.

    12 may not be the actual bit depth range of the image (i.e., the image could have been created in a 16-bit image space), but the maximal pixel value contained with that image is still 3965.

    ClosedUse “x” bits per pixel

    If you know the full bit depth range for the image, select it from the drop-down menu.

    ClosedAlways Ask

    When selected, the Unknown Bit Depth window is displayed when opening the image.

  2. To save the bit depth, save your image file as an MBF jpx/jp2 file (the standard JPEG2000 format is limited to 8 bits).
