Joy Track

Use Joy Track to maintain the alignment between tracing and traced tissue when you move the stage with the joystick.

Neurolucida tracks stage movement in (X, Y, Z) to maintain alignment.

To focus without changing the Z position of the tracing, use Joy Free.

Starting Joy Track (three methods)

• Click Move>Navigate>Joy Track.

• While tracing, right-click in the tracing window and select Joy Track.

• Click the Joy Track icon in the top toolbar.

Exiting Joy Track

Right-click in the tracing window.

• To disable the joystick, select End Joystick Mode or click the Joy Track icon again.
• To switch to Joy Free, select Switch To Joy Free.

Keeping Joy Track on

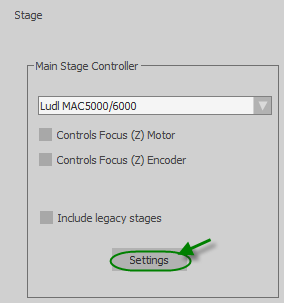

1. Go to the File>Hardware setup>Stage panel.
2. Click the Settings button.

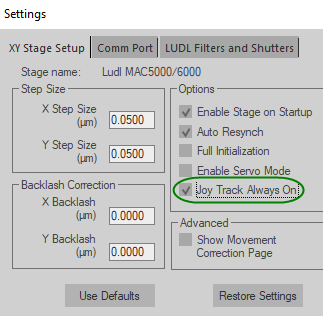

3. In Settings, check Joy Track always on.
