Using the mouse wheel



Depending on the settings, you can adjust the line thickness, focus, or toggle between line thickness and focus:

Recording line thickness

Adjusting the cursor size enables you to record the line thickness (i.e., process diameter) used to trace:

1. Rotate the mouse wheel.

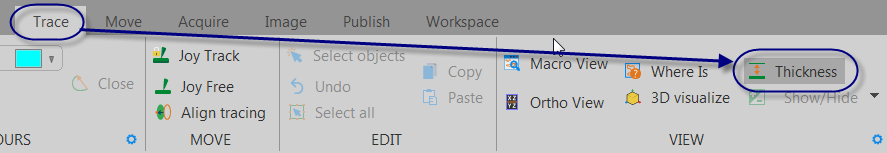

2. To display the thickness of the line in the tracing window, click Trace>View>Thickness.

Focusing

• Click the icon in Move>Z axis>Mouse wheel focus.

OR

• Check Focus with mouse wheel in the File>Preferences>General preferences>Mouse wheel panel.

This will disable the Adjust Cursor Size default action with the mouse wheel.

To navigate through Z one plane at a time, we recommend that you use the Page Up and Page Down keys.

Enable both line thickness recording and focusing with the mouse wheel

1. Check Focus with mouse wheel in the File>Preferences>General Preferences>Mouse Wheel panel to change the mouse wheel action to focusing.
2. Rotate the wheel while holding down Ctrl to adjust the cursor size to match the line thickness.
