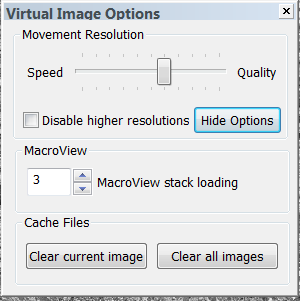

Virtual Image Options
Use to adjust navigation speed for images displayed in virtual image mode. Click Options>Virtual Image Options.
Movement resolution
Adjust if you have a slow connection to your server or do not want to see lower resolution regions while the full resolution region is loading.
When you navigate to a different region of the image, the region you want to examine may appear pixelated before being displayed at full resolution. This is because Neurolucida is loading a lower resolution version of the region before loading the full resolution. This allows faster response for very large images or images hosted on a Biolucida Cloud server.
- Speed: If you set the slider to the left, closest to Speed, the area of interest is loaded at low resolution; loading is faster.
- Quality: If you set the slider to the right, closest to Quality, the area of interest is loaded at full resolution; loading is slower.
- Disable higher resolutions: Images are never displayed at full resolution while you navigate.
Click the Show Options/Hide Options button to display/hide the MacroView and cache options.
MacroView
MacroView stack loading is set to 3: The view in the Macro View window is refreshed every 3 planes based on the current Z location.
- Set the stack loading value to 1 if you need MacroView to display every plane (that this may result in slower loading).
Cache Files
- Click the Clear button to free memory for your system.
