Configure Tool Panels
Create up to 4 tool panels which contain groups of tools you use most.
Adding a tool to a tool panel

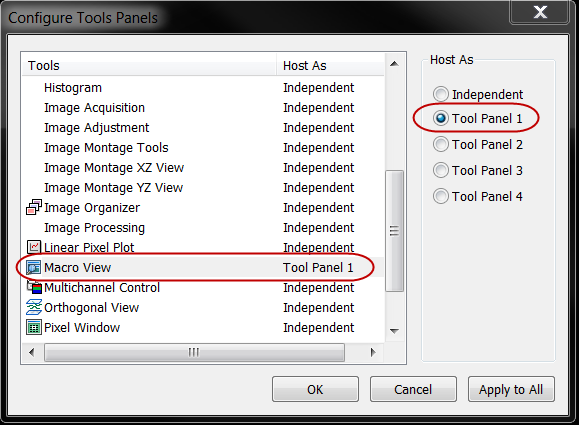

- Click Tools>Configure Tool Panels. Neurolucida displays the Configure Tool Panels dialog box.
- Click on a tool.
- Select a tool panel under Hosted as
- Repeat Steps 2 and 3 to add more tools.
- When all tools have been assigned to a tool panel, click OK.

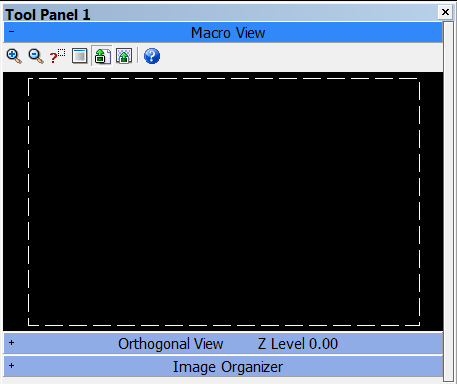

Displaying the tool panel

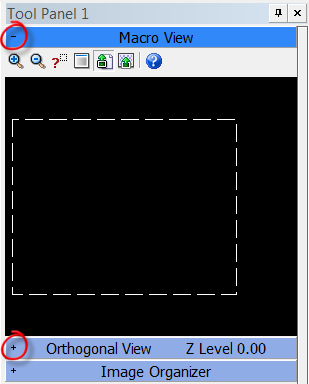

- Click on each tool's icon in the toolbars to open all the tools grouped ("hosted") under one tool panel.
- Click on the "+" sign to display the tool; click on the "-" sign to minimize the tool

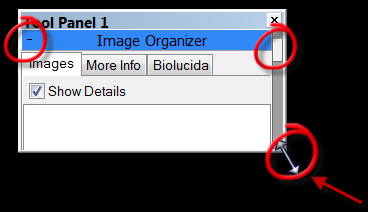

. - If the tool panel window is too small, you may only see part of one tool.
To see more, you may:- Click on the minus sign "-" in the top left corner to minimize the tool.
- Use the scroll bar on the right.
- Increase the size of the tool panel window: drag the bottom right corner of the window.
- Dock the tool panel (How do I set up my docking windows?)
