Status Bar

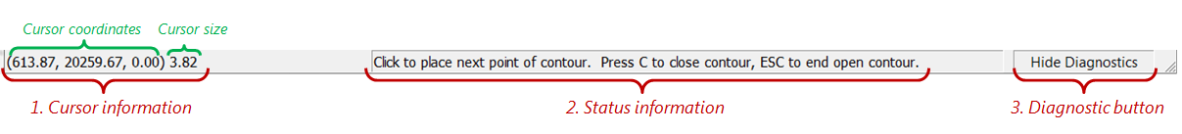

The Status Bar, at the bottom of the screen, is divided into three sections:



1. Cursor information on the left:
   • Coordinates of the cursor in the format (X,Y,Z): The X and Y values reflect the
   • X and Y position of the cursor relative to the reference point; the Z value reflects the current focal depth within the current section.
   • Cursor size:
     • If you are using a circular cursor, size refers to the diameter of the cursor.
2. Status information in the middle: displays information or instructions directly related to your current task.
3. Diagnostics button on the right:
   • Scenario 1 : No diagnostics were made; the button is blank.
   • Scenario 2 : Events have been reported in the Diagnostic Window; the button displays Hide Diagnostics.







---
