Selecting and hiding structures

You can select structures by clicking or dragging with your mouse, using selection tools, or by selecting structures in the Traced Structures panel.

Selecting with your mouse

• For a single structure, click the structure to select it.
• For multiple structures, click the Marquee button, hold down the Ctrl key and drag the mouse around the desired structures.
• To de-select a structure, hold down Ctrl  and click a structure.

Selection Tools

Find the following tools for selecting traced structures and/or markers by going to View > Edit:

	Click to select all traced structures and/or markers
	Click to deselect anything that is currently selected
	Click then drag the mouse over the structures you want to select
	Click to hide everything that is currently selected
	Click to show (or unhide) everything that is hidden

Selecting using the Traced Structures panel

If the panel is not already open, click the Traced Structures button on the View ribbon to open it.

• To view a list of structure, click the small arrow.

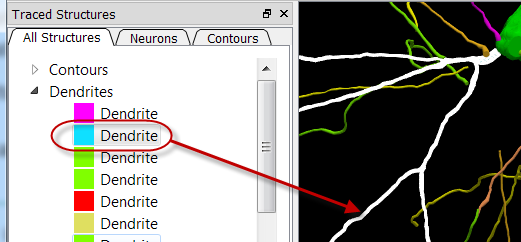

• To select a structure, click the name of the structure. The structure is highlighted in white in the tracing.
• To select multiple structures, click the name of one structure, hold down Ctrl and click the names of the other structures.
