Spines (branched structure)

You can generate the Spine report and the Spine details report. If you detected spines with Neurolucida 360, details are broken down into two reports:

Spine details - manual reports the data about spine manual placement.
Spine details - automatic reports the data for spine automatic detection; you can choose of these two measurements, spine total extent or spine backbone length, to classify spines automatically.

If you used regular markers for the spines, you need to use the Individual Marker or Marker Totals analyses instead.

Results

Spine details based on total extent - automatic (Neurolucida 360 only)

Reports the metrics for spines detected automatically with Neurolucida 360.

Assigned type	Auto: Refers to the type automatically assigned when you use Classify all. Manual: Refers to the type you assigned via the Edit Spines panel.
Anchor radius	Refers to the radius of the dendrite at the point where the spine attaches. This radius is calculated with the assumption that the dendrite is modeled as having an elliptical cross section. For a spine with a length L and an anchor radius AR, the maximum distance to the center line is: L + AR.
Attached?	yes: The spine head appears connected to the dendrite. no: The spine head is connected by a neck that is too dim to be identified by the image segmentation used to extract the spine shape. As a result, the spine head appears disconnected from the dendrite. To detect such a spine, you may increase the detector sensitivity and manually re-detect the spine to allow the neck to be modeled.
Base coordinate	3D coordinate of the point where the spine is attached to the dendrite.
Branch order	Uses the centrifugal branch order.
Contact area	Apparent (that is, not corrected for residual axial smear) cross-sectional area of the base of the spine (area of the dendritic model covered by the spine). N/A: Spine is too small to determine contact area. Note that when there is no correction for residual axial smear, objects typically appear elongated along the optical axis because the microscope's axial resolution is much lower than its lateral resolution.
Dendrite diameter at anchor	Difference between the total backbone length to center and the total backbone length.

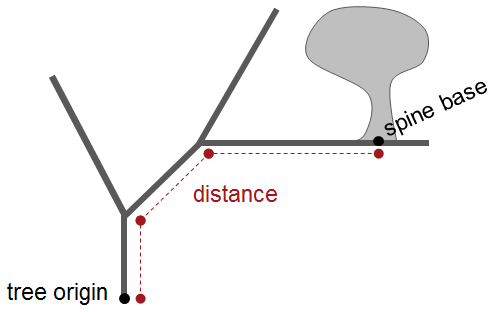

Distance	Sum of the lengths of the branch segments from the base of the spine to the beginning of the tree the spine is attached to.
exM neck diameter	The exM neck diameter is the average of the Rayburst diameters from the center of all layers below the spine head. The top of the neck is one radius from the center of the head.
Head diameter	Based on Rayburst diameters calculated in the XY plane after the automatic detection process.
Head extent	Shortest distance from the center of the head layer diameter to the surface of the dendrite.
Head extent to center	Shortest distance from the center of the head layer diameter to the center of the dendrite.
Head position	3D coordinates of the center of the head of the spine measured in microns from the reference point.
Neck diameter	Based on Rayburst diameters calculated in the XY plane after the automatic detection process.
Neck extent	Shortest distance from the center of the neck layer diameter to the surface of the dendrite.
Neck extent to center	Shortest distance from the center of the neck layer diameter to the center of the dendrite.
Plane angle	Refers to the radius of the spine attachment vector with respect to the optical plane. Zero means that the spine axis is parallel to the optical plane. 90 (+/-) means that the axis is perpendicular to the optical plane. This is useful for discriminating between spines that are clearly visible on the side of the dendrite and spines that are detected over or under the dendritic segment when viewed in the direction of the optical axis.
Spine type	Refers to the classification used in Neurolucida 360 to mark the spines.
Surface area	Apparent (that is, not corrected for residual axial smear) exterior surface area of the spine in µ². N/A: Spine is too small to determine surface area or spine was not detected in 3D. Note that when there is no correction for residual axial smear, objects typically appear elongated along the optical axis because the microscope's axial resolution is much lower than its lateral resolution.

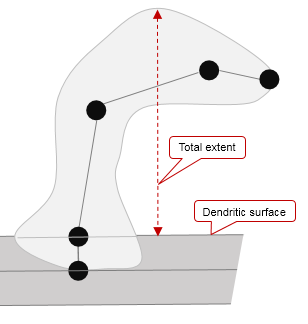

Total extent	Shortest distance from the furthest identified voxel to the surface of the dendrite. To determine the radius of the dendrite, subtract Total extent from Total extent to center.

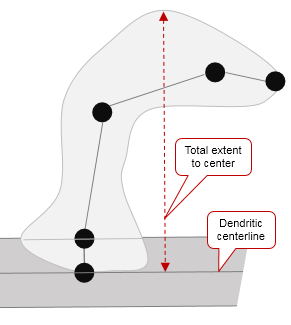

Total extent to center	Shortest distance from the furthest identified voxel to the center of the dendrite.
Tree	Each tree selected for the analysis is assigned a unique number starting at 1.
Volume	Measured by the number of voxels that make up the spine object multiplied by the volume of a single voxel. The volume of a single voxel is: X resolution * Y resolution * Z resolution.
Voxel count	Total number of voxels that constitute the spine. Based on voxel processing and used to evaluate the spine size. It is determined by the image scaling

Spine details based on backbone length - automatic (Neurolucida 360 only)

Reports the metrics for spines detected automatically with Neurolucida 360.

Assigned type	Auto: Refers to the type automatically assigned when you use Classify all. Manual: Refers to the type you assigned via the Edit Spines panel.
Anchor radius	Refers to the radius of the dendrite at the point where the spine attaches. This radius is calculated with the assumption that the dendrite is modeled as having an elliptical cross section. For a spine with a length L and an anchor radius AR, the maximum distance to the center line is: L + AR.
Attached?	yes: The spine head appears connected to the dendrite. no: The spine head is connected by a neck that is too dim to be identified by the image segmentation used to extract the spine shape. As a result, the spine head appears disconnected from the dendrite. To detect such a spine, you may increase the detector sensitivity and manually re-detect the spine to allow the neck to be modeled.
Backbone length	Backbone length to center minus distance between dendritic surface and insertion point on the center line.
Backbone length to center	Tortuous path from furthest voxel along the path of the backbone to the insertion point on the center line.
Base coordinate	3D coordinate of the point where the spine is attached to the dendrite.
Branch order	Uses the centrifugal branch order.
Contact area	Apparent (that is, not corrected for residual axial smear) cross-sectional area of the base of the spine (area of the dendritic model covered by the spine). N/A: Spine is too small to determine contact area. Note that when there is no correction for residual axial smear, objects typically appear elongated along the optical axis because the microscope's axial resolution is much lower than its lateral resolution.
Distance	Sum of the lengths of the branch segments from the base of the spine to the beginning of the tree the spine is attached to.
exM neck diameter	The exM neck diameter is the average of the Rayburst diameters from the center of all layers below the spine head. The top of the neck is one radius from the center of the head.
Head diameter	Based on Rayburst diameters calculated in the XY plane after the automatic detection process.

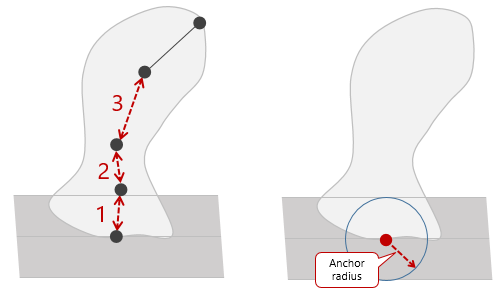

Head backbone length	Head backbone length = [1] +[2] + [3] - [anchor radius]
Head backbone length to center	Head backbone length to center = [1] +[2] + [3]
Head position	3D coordinates of the center of the head of the spine measured in microns from the reference point.

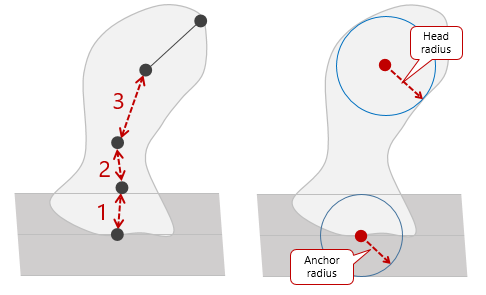

Neck backbone length	Neck backbone length = [1] +[2] + [3] - [head radius] -[anchor radius]

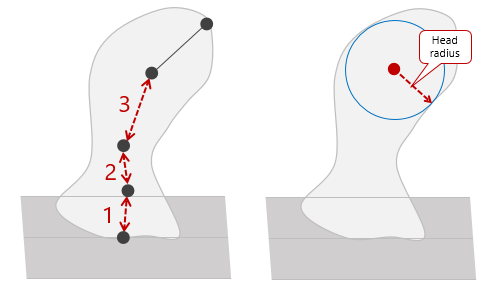

Neck backbone length to center	Neck backbone to center = [1] +[2] + [3] - [head radius]
Neck diameter	Based on Rayburst diameters calculated in the XY plane after the automatic detection process.
Plane angle	Refers to the radius of the spine attachment vector with respect to the optical plane. Zero means that the spine axis is parallel to the optical plane. 90 (+/-) means that the axis is perpendicular to the optical plane. This is useful for discriminating between spines that are clearly visible on the side of the dendrite and spines that are detected over or under the dendritic segment when viewed in the direction of the optical axis.
Spine type	Refers to the classification used in Neurolucida 360 to mark the spines.
Surface area	Apparent (that is, not corrected for residual axial smear) exterior surface area of the spine in µ². N/A: Spine is too small to determine surface area or spine was not detected in 3D. Note that when there is no correction for residual axial smear, objects typically appear elongated along the optical axis because the microscope's axial resolution is much lower than its lateral resolution.
Tree	Each tree selected for the analysis is assigned a unique number starting at 1.
Volume	Measured by the number of voxels that make up the spine object multiplied by the volume of a single voxel. The volume of a single voxel is: X resolution * Y resolution * Z resolution.
Voxel count	Total number of voxels that constitute the spine. Based on voxel processing and used to evaluate the spine size. It is determined by the image scaling

Type (spine class)	Refers to the class(es) used in Neurolucida to mark the spines.

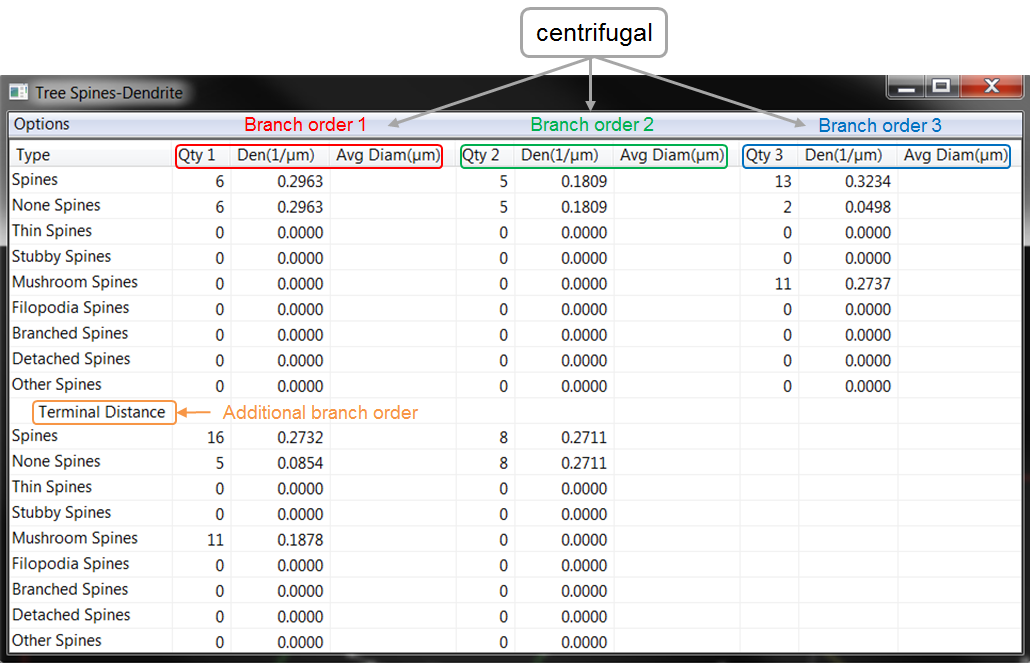

Density	[Quantity of spines on the segment]/[Length of the segment]
Average diameter	Average diameter of the spines on the segment.

Tree	Each tree selected for the analysis is assigned a unique number starting at 1.
Branch order	Uses the centrifugal branch order. About branch orders
Spine class	Refers to the class(es) used in Neurolucida to mark the spines.
Length to center	Shortest path distance from the center of the spine head to the center of the dendrite.
Length	Shortest path distance from the center of the spine head to the surface of the dendrite. To determine the radius of the dendrite, subtract Length to Center and Length values.
Diameter	Diameter of the spine head.
Distance	Sum of the lengths of the branch segments from the base of the spine to the beginning of the tree the spine is attached to.
Surface area	Modeled as a frustum for manually-placed spines; based on the mesh for detected spines.
Volume	Modeled as a frustum for manually-placed spines; based on the mesh for detected spines.
Base Coordinate	3D coordinates of the point where the spine is attached to the segment.
