MacroView

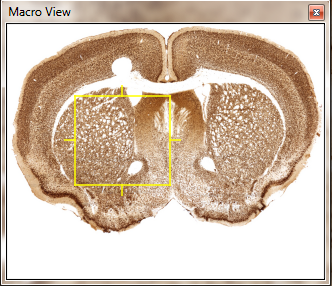

The MacroView window displays an overview of the current image. A navigation box outlines the area of the image currently on screen in yellow
.
- Click a region of interest in the MacroView image to instantly navigate to that area in the current image. The navigation box is re-sized based on the zoom level.
Modifying the MacroView settings

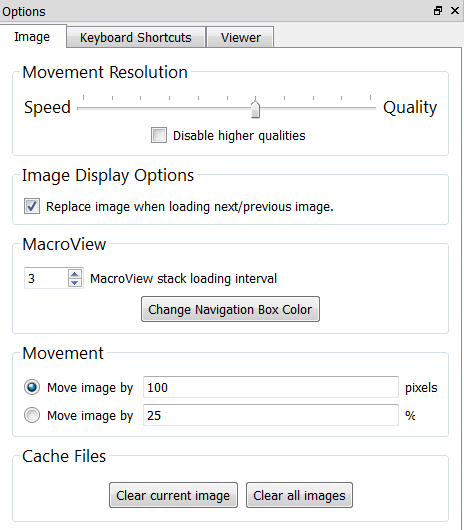

To access the settings, click Tools>Viewer Options. The Image tab in the Options panel opens
.
MacroView stack loading interval: The default is 3 which means that the view in the MacroView window is refreshed every 3 planes based on the current Z location.
Set the stack loading value to:
- 1 if you need MacroView to display every plane (this may result in slower loading).
- At least 5 for faster loading.
Biolucida caches all downloaded macro images. When you reopen the image, Biolucida will preload any MacroView images downloaded in a previous session.
Also see Navigating images, MacroView images are not being updated for some image stack planes
